Robotis Bioloid STEM
The Robotis Bioloid STEM robot kit is designed as a complete robotic learning experience.

Bioloid STEM

 ex GST
 inc GST
SKU: 51134328SLSTAND
Product Description

Robotis Bioloid STEM

Exposing students to Robotics is a great way to teach STEM (Science, Technology, Engineering, Mathematic) principals, but putting together the correct hardware, software and curriculum can be a daunting task. That's where the newest BIOLOID kit from ROBOTIS comes in. The BIOLOID STEM Standard Robot Kit is designed as a complete robotic learning experience.

The STEM kit has modular hardware, so you can build 7 different pre-designed robots or go on to design your own robot. The Exapnsion Kit can then be added to the basic STEM kit to allow a further 9 robots to be constructed. Combine that with the versatile and easy-to-program CM-530 controller and you'll find yourself building robots in no time! You can easily load pre-programmed behaviours to your robot using the RoboPlus software and even rewrite and load your own custom behaviours!

What really sets this STEM kit apart from other educational kits is the fantastic curriculum guide. These guides are far from a simple assembly manual - the 2 workbooks represent 21 weeks of comprehensive educational training. The STEM kit breaks each chapter into three phases: the Basic Phase, the Application Phase, and the Practical Phase.

First, the Basic Phase will introduce students to different robots and robotic features with each to understand analogies, pictures, and examples. The basic phase will finish up with having students assemble the robot with a clear assembly guide. Next the Application Phase will teach students about programming by explaining the pre-written programming examples step by step. This phase will also explain the math that goes into programming robots. Finally the Practical Phase will give students a chance to solve programming problems on their own, as well as learn about advanced robotic concepts. By the end of each chapter students will have a fully functioning robot running custom code that they have written!

For a more exciting robot learning experience, parts are developed to be compatible with OLLO parts.
The STEM kit provides various learning points and challenges.

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player

Newly designed AX-12W and IR sensor array are perfect for the robot competitions.
Weight: 52.9g
Dimension: 32mm x 50mm x 40mm
Minimum Control Angle : 0.29 °
Gear Ratio : 32:1
Stall Torque : 0.15N.m(at 12V)
No load speed : 467rpm(at 12V)
Operating Mode
    - Actuator Mode(0˚ ~ 300˚)
    - Wheel Mode (Endless turn)
Operating Temperature : -5℃ ~ +70℃
Baudrate: 1 Mbps max.
Feedback : Position, Temperature, Load, etc.
Material : Engineering Plastic
Weight : 18g
Resolution : 10bit(1024)
Operating Temperature : -5℃ ~ +85℃
Operating Voltage : 7 ~15V(Recommended 11.1V)
Max Current : 100mA
Command Signal : Digital Packet
Link (Physical) : TTL Level Multi Drop
                            (daisy chain type Connector)
Baudrate : 7843bps ~ 1 Mbps
Feedback : Input Voltage,
                      IR Sensor data(x7)

Use the same program you learned in class for various robot competitions!
BIOLOID STEM builds 16 example robots with two packages (total of 48 classes)

- Sample robots : 7
- Curriculum : 21 classes>
- Contents : 4-bar linkage, centrifugal force and centripetal force, angle and movements, pressure and width, steering apparatus, differential gears and etc.

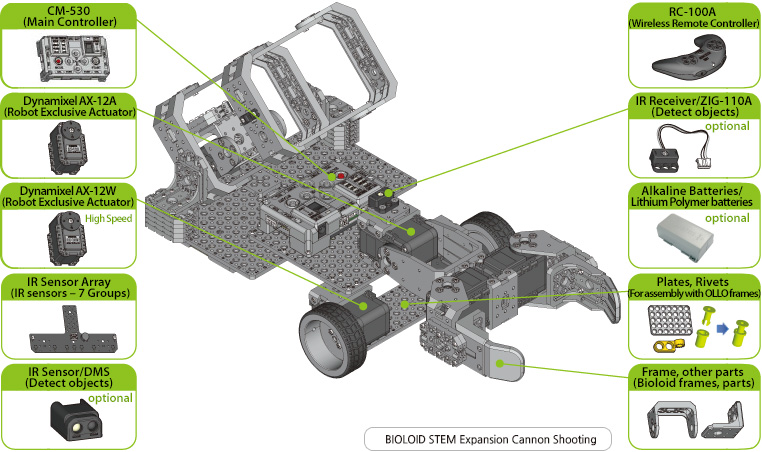

- Major parts : CM-530, IR Sensor Array, AX-12W, Workbook

- Sample robots : 9
- Curriculum : 27 classes
- Contents : Sum of “force,” the principle of bipedal walking robots, Bio-Mimetic Engineering, Law of energy conservation
- Major parts : AX-12A, Workbook
The curriculum helps you learn and understand STEM progressively through the robot learning process. It consists of an ‘introduction,’ ‘theory,’ ‘building,’ and ‘application.’
-Main controller CM-530 1ea
 *32Bit CPU
 *Internal I/O device: 6 buttons, MIC (sound detection), voltage sensor
 *External I/O device: 5-pin ports(compatible with OLLO) : 6ea
 *AX series dynamixel connecting ports : 5ea- Robot exclusive Dynamixels : 6ea(AX-12W: 2ea, AX-12A: 4ea)
-IR Sensor Array : 1ea
-IR Sensor : 3 ea
-RC-100A (Wireless remote controller) : 1ea
-Download cable : 1ea
-Workbook : 4 volumes
-Screw driver
