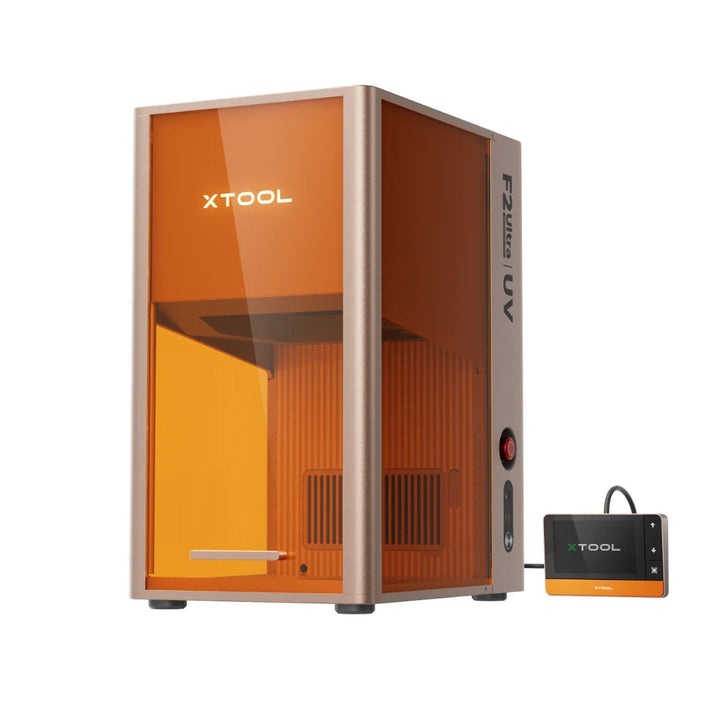

xTool F2 Ultra UV - Laser Engraver
- 5W UV Power
- Micron-Level Precision
- Master of Glass Engraving
- Unmatched Material Compatibility
- Burn-Free Edges
The xTool F2 Ultra UV is a premium 5W ultraviolet laser engraver engineered for creators, retailers, and small businesses that demand microscopic detail and flawless results. With a 355 nm UV laser and a spot size under 10 μm, this system delivers true micron-level precision — perfect for engraving on most materials, even transparent, fragile or heat-sensitive surfaces such as glass, crystal, plastics, ceramics, and coated metals.
Features
Engrave Inside GlassUV laser technology is unmatched for fine glass detailing, enabling permanent 3D engravings beneath the surface without leaving a single mark on the exterior. Whether it’s glass blocks, crystal balls, or other shapes, each object is transformed into a striking, one-of-a-kind piece with exceptional artistic and collectible appeal. |
 |
 |
Engrave Glass SurfacesThe F2 Ultra UV engraves ultra-fine details directly onto glass with zero prep and no post-cleanup. It also supports embossing, cutting, and rotary engraving, opening the door to endless creative possibilities and elevating your glass artistry. |
No Dark EdgesThe UV laser breaks molecular bonds without heat, ensuring zero burns, zero charring, and zero damage. Forget pre-coating or polishing — cold processing keeps every detail clean and precise. |
 |
 |
Micron PrecisionA sub-10 μm UV spot — more than 100× smaller than CO₂ — gives the F2 Ultra UV unmatched micron-level sharpness. Pair that with a 0.001 mm precision algorithm, and every line, texture, and micro-detail comes through flawlessly. |
Unlock More MaterialsAs the ultimate laser for nearly any material, the F2 Ultra UV excels where others fall short — delivering crisp, intricate detail on acrylic, crystal, ceramic, silicone, plastic, and more, all with unmatched material versatility. |
 |
 |
Dual 48MP CamerasThe first dual-camera UV laser system of its kind. Two cameras deliver auto-alignment and focusing with 0.2 mm precision—60% more accurate than single-camera models—giving you flawless results with zero effort. |
From 2D to 3D MasterpiecesWith AI-powered 3D conversion, xTool Studio makes inner engraving simple—just drop in your text or images and let the software handle the rest. Autofocus, pinpoint alignment, easy drag-and-drop controls, and intelligent settings ensure clean, professional outcomes. |
 |
 |
Extend Your WorkspaceFeaturing two quick-swap field lenses, the F2 Ultra UV offers expansive workspace coverage for both inner and surface engraving, striking an ideal balance between performance and detail. Pair it with the conveyor to extend your capabilities and elevate your creative freedom. |
Safe by DesignThe F2 Ultra UV is equipped with comprehensive safety features, including a sealed protective enclosure to block laser leakage, smart humidity monitoring, advanced cooling to prevent overheating, and a dedicated emergency stop button. |
 |
Contents
- 1x xTool F2 Ultra UV
- 1x Touchscreen Controller
- 1x Exhaust Pipe
- 1x Power Adapter
- 1x Power Cable
- 1x USB Cable
- 1x Key
- 1x Slatted Panel
- 1x L-Shaped Positioning Piece
- 1x Lint-free Cloth
- 1x 2.5mm Screwdriver
- 1x Surface Engraving Material Pack
- 1x Inner Engraving Pack
- 1x Quick Start Guide
- 1x Safety Instructions
- Safety Certification: Class 4
- Dimensions: 294 x 429 x 520 mm
- Weight: 22.5 kg
- Max Machine Input Power: 348W
- Power Adapter Input Voltage: 110 V - 240 V, AC 50/60 Hz
- Storage Temperature: -10 - 60°C
- Operating Temperature: 10 - 30°C
- Storage Humidity: 10 - 60% Rh
- Laser Type: 5W 355 nm UV Laser
- Processing Mode: Laser Engraving | Laser Cutting
- Supported Cuttable Materials: Glass | Plastics | Fabric | Leather | Acrylic (not fully transparent) | Paper | Wood & more!
- Supported Engravable Materials: Glass | Crystal | Acrylic | Wood | Metal | Leather | Plastic | Rubber | Silicone | Ceramic & more!
- Inner Engraving Working Area: 70 x 70 mm
- Surface Engraving Working Area: 200 x 200 mm
- Surface Engraving with Conveyor Working Area: 200 x 500 mm
- Max Working Speed: 15,000mm/s
- Max Laser Cutting Capacity (Basswood): 15mm in Multiple Passes
- Max Laser Cutting Capacity (Acrylic): 12mm in Multiple Passes
- Max Processing Height: 150 mm
- Max Rotary Engraving Diameter: 150 mm
- Pre-assembled: Yes
- Built-in Camera: 48MP Dual Cameras
- Positioning Method: Camera Positioning
- Focus Mode: Autofocus
- Ranging System: LiDAR Ranging System
- Preview Method: Smart Camera Preview | High-speed Light Live Preview
- Laser Spot Size: 0.02 x 0.02 mm
- Positioning Precision: 0.2 mm, Camera
- Ranging Precision: 0.2 mm, Camera
- Image Resolution: 48MP
- Motion Accuracy: 0.00133 mm
- Vector Fitting Resolution: 0.001 mm
- Operating System: Windows | MacOS
- Connection Method: USB | Wi-FI | IP
- Supported Files: SVG | DXF | JPG | JPEG | GIF | PNG | BMP | WEBP | STL | OBJ | AMF | 3MF | GLB | PLY
- Supported Software: xTool Creatice Space/Studio
- AImake Compatibility: Yes
What’s included in the Inner Engraving Pack?
- 1x Inner engraving lens
- 1x Riser
- 1x K9 glass block (for testing/calibration)
- 3x Inner engraving calibration cards
Inner engraving and surface engraving require different lenses. This pre-calibrated pack lets you switch modes easily and accurately.
Can F2 Ultra UV and F2 Ultra swap field lenses?
Absolutely not. Please note that F2 Ultra UV and F2 Ultra are not the same machine. They use different light sources and different interfaces, so their field lenses are not interchangeable.
