Bambu Lab P1S 3D Printer Back to 3D Printers Bambu Lab H2S 3D Printer

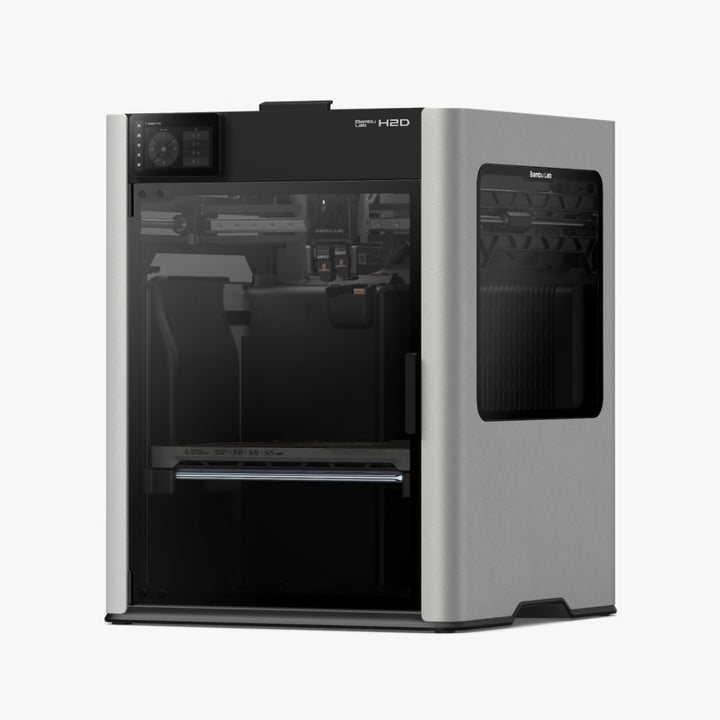

Bambu Lab H2D
Bambu Lab H2D Combo
Bambu Lab H2D AMS HT Combo

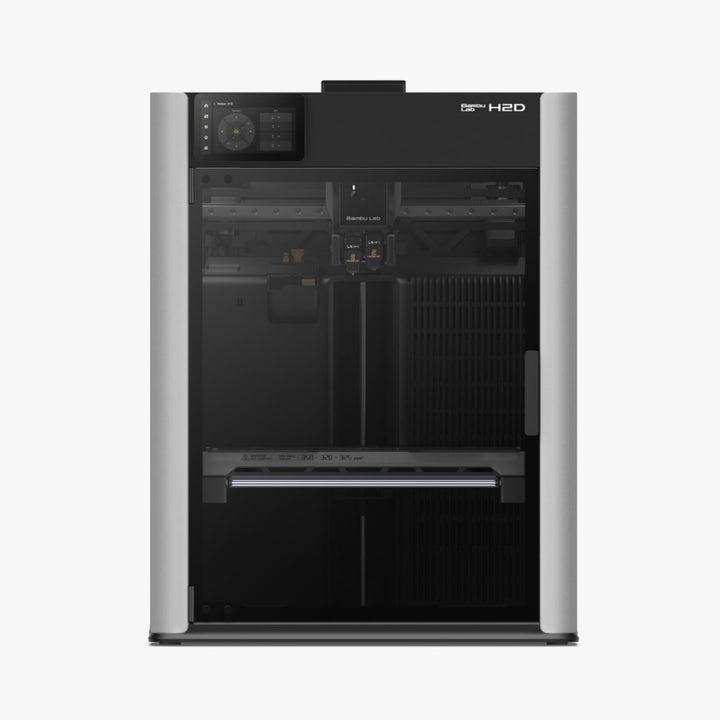

Bambu Lab H2D Front On

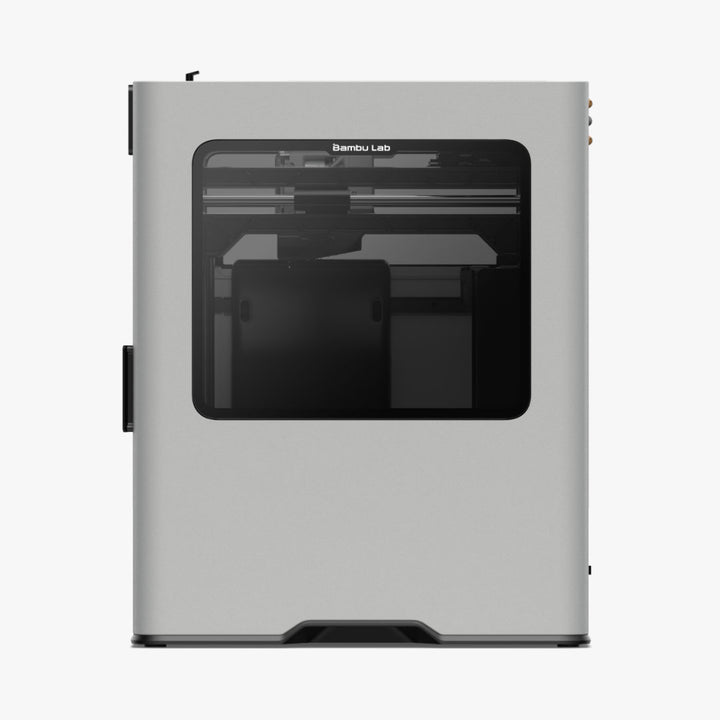

Bambu Lab H2D Side On

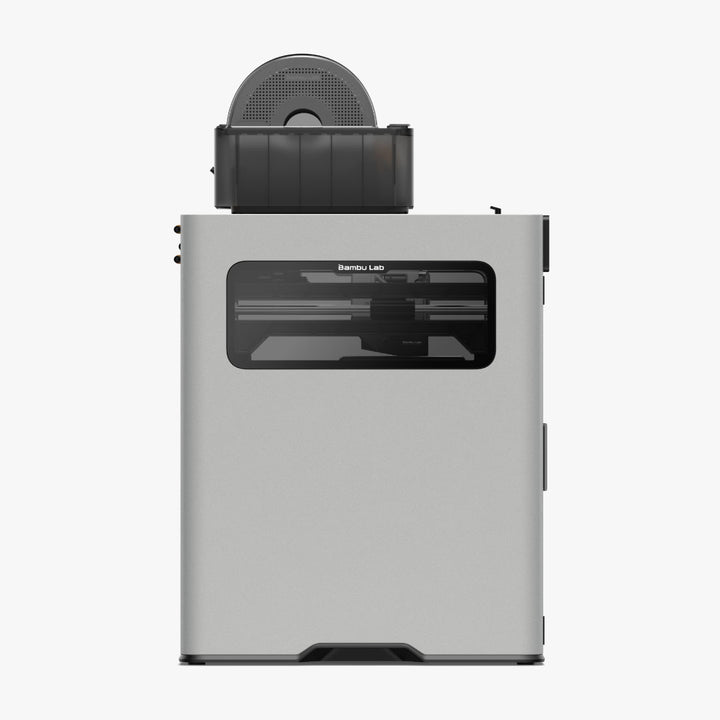

Bambu Lab H2D Side On with AMS 2 Pro

Bambu Lab H2D 3D Printer

$2,999.00 inc GST
  • Dual-nozzle Multi Material 3D Printing
  • Optional 10W/40W Laser & Cutting Module
  • 350°C Nozzles & 65°C Active Chamber Heating
  • 5μm Resolution Optical Motion Calibration
  • Auto Leveling
  • Max Speed 1000mm/s
  • Max Acceleration 20000mm/s²
Brand: Bambu Lab
SKU: 56257678
Availability: In Stock Backorder Out of stock

Bundle: H2D

H2D
H2D Combo
H2D AMS HT Combo
Add to Wishlist
Shipping & DeliveryAsk a Question
Description

The Bambu Lab H2D is a next-generation 3D printer designed for versatility and efficiency, featuring a dual-nozzle system that unlocks powerful multi-material and multi-colour printing. Built with Bambu Lab’s signature speed, precision, and reliability, the H2D makes it easy to combine different materials or finishes in a single print.

From rapid prototyping to complex functional parts, it delivers professional results while streamlining the workflow for makers, educators, and businesses alike.



Features

Multi-Material Printing

Print flexible and rigid materials together to create complex interlocking structures and innovative designs beyond the limits of traditional manufacturing. By combining high-performance materials with standard ones, you can cut costs and maximise efficiency, using premium materials only where they’re needed most.
H2D Multi-Material Print Example
Model with Disolvable Support Material

Dedicated Support Material

Printing with supports is easier than ever. Thanks to the H2D’s dual-nozzle system, one nozzle can be dedicated to support material, ensuring stable prints with clean, precise support interfaces.

Efficient Multi-Colour Printing.

Dual-nozzle printing minimises purge cycles in multi-colour jobs, while the H2D’s smart algorithms optimise filament usage to save both time and materials.
Multi-colour printed car model
Bambu Lab Vision Encoder Plate Installed

Ultra-Fine Motion Accuracy

The H2D achieves distance-independent 50 µm motion accuracy across the entire workspace—ten times better than its predecessor—thanks to an ultra-precise vision encoder plate paired with 5 µm resolution optical measurements that track and correct toolhead motion. (Vision Encoder sold separately)

Large Build Volume

With a build volume of up to 350 x 320 x 325 mm, the H2D makes large-scale projects simple. Its expanded capacity lets you bring even your most ambitious ideas to life.
Single and Dual-Nozzle Build Area
Hotend and Heated Chamber

350°C Hotend & 65°C Chamber Heating

With 65°C active chamber heating and a high-temperature hotend reaching 350°C, the H2D provides precise closed-loop temperature control. This system minimises warping and deformation in advanced materials, ensuring strong layer bonding and unlocking their full performance potential.

600mm/s Print Speed

The H2D’s high-flow hotend is engineered for reliable printing at speeds up to 600 mm/s. Built to maintain consistent extrusion, it removes flow-rate limitations, ensuring uninterrupted high-speed performance no matter the size or complexity of the print.
Flow Rate Test Results
PMSM Servo Architecture

Precise Extrusion Control

Bambu Lab’s proprietary PMSM servo architecture creates an intelligent extrusion control system, performing 20 kHz torque, resistance, and position sampling to dynamically adjust electromagnetic torque. This stabilises extrusion while detecting issues such as filament grinding or clogging.

Smart Nozzle Camera

The H2D featues an AI-powered nozzle camera with macro lens, providing intelligent monitoring that continuously tracks extrusion and instantly detects material buildup, filament shifts, or extrusion failures.
Nozzle Camera Capturing Print Failures
AI Camera Check Diagram

AI Pre-Check

Before every print, the H2D’s vision system runs a full pre-flight check. It scans the chamber to detect debris, audits hardware to identify nozzle size and build plate properties, and verifies alignment between hardware settings and slicer parameters for seamless consistency.

15 Sensors on Filament Path

Unlike traditional single-sensor systems, the H2D offers comprehensive material flow monitoring. Along the AMS-to-nozzle path, 15 sensors form an intelligent network that continuously tracks feeding velocity, tension, filament tip position, extruder temperature, and extrusion pressure—creating an industry-leading system for precise filament control.
Sensor Locations
Bambu Studio Software and Bambu Handy App

Bambu Studio & Bambu Handy App

Take full control of your H2D wherever you are—use Bambu Studio or the Bambu Handy app to monitor prints remotely, record timelapse videos with the onboard camera, and explore new projects from the MakerWorld library.

Optional Laser Cutting Add-On

The Bambu Lab H2D Laser Upgrade Kit transforms the H2D into a versatile maker’s tool, expanding its capabilities beyond 3D printing. With the high-precision laser module, users can engrave detailed patterns or cut thin materials, unlocking new creative and functional applications in wood, leather, acrylic, and more.
H2D Laser Heads
H2D Vinyl Cutting and Pen Drawing

Optional Drawing & Cutting Add-On

The Cutting Upgrade Kit for the H2 Series expands your machine’s functionality beyond 3D printing, enabling precise blade cutting for a wide range of materials such as vinyl, paper, fabric, and more. In addition to cutting, the kit also unlocks Draw Mode, allowing the H2 to hold a pen for sketching, outlining, or adding decorative details directly onto your projects.


H2D Contents

  • 1x Bambu Lab H2D
  • 1x PEI Build Plate (Pre-installed)
  • 1x Spool Holder
  • 1x Accessory Box
  • 1x Safety Key

H2D Combo Contents

  • 1x Bambu Lab H2D
  • 1x PEI Build Plate (Pre-installed)
  • 1x Spool Holder
  • 1x Accessory Box
  • 1x Bambu Lab AMS 2 Pro
  • 1x Safety Key

H2D AMS HT Combo Contents

  • 1x Bambu Lab H2D
  • 1x PEI Build Plate (Pre-installed)
  • 1x Spool Holder
  • 1x Accessory Box
  • 1x Bambu Lab AMS 2 Pro
  • 1x Bambu Lab AMS HT
  • 1x Safety Key
Specifications

Weights & Dimensions

  • Printer Dimensions: 492 x 514 x 626 mm
  • Printer Weight: 31 kg
  • Shipping Dimensions: 620 x 620 x 755 mm
  • Shipping Weight: 38.5 kg
  • Combo Shipping Dimensions: 620 x 620 x 755 mm
  • Combo Shipping Weight: 42.3 kg

Body

  • Single Nozzle Build Volume: 325 x 320 x 325 mm
  • Dual Nozzle Build Volume: 300 x 320 x 325 mm
  • Total Volume for Two Nozzles: 350 x 320 x 325 mm
  • Chassis & Shell: Aluminum, Steel, Plastic & Glass

Tool Head

  • Hotend: All-Metal
  • Extruder Gears: Hardened Steel
  • Nozzle: Hardened Steel
  • Max Nozzle Temp: 350°C
  • Nozzle Diameter: 0.4mm
  • Filament Cutter: Yes
  • Filament Diameter: 1.75mm
  • Compatible Filament: PLA | PETG | TPU | ABS | ASA | PVA | PET | PET-CF | PLA-CF | PETG-CF | PA | PA-CF | ASA-CF | PC | BVOH | PPA-CF/GF | PPS | PPS-CF/GF

Heatbed

  • Build Plate: Textured PEI
  • Max Bed Temp: 120°C

Speed

  • Max Travel Speed: 1000 mm/s
  • Max Acceleration: 20,000mm/s²
  • Max Hot End Flow: 40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
  • Max Hot End Flow (High Flow Nozzle): 65 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)

Chamber Temperature Control

  • Active Chamber Heating: Supported
  • Max Temperature: 65°C

Air Purification

  • Pre-Filter Grade: G3
  • HEPA Filter Grade: H12
  • Activated Carbon Filter Type: Granulated Coconut Shell

Cooling

  • Part Cooling Fan: Closed Loop Control
  • Hot End Fan: Closed Loop Control
  • Control Board Fan: Closed Loop Control
  • Chamber Temperature Regulator Fan: Closed Loop Control
  • Auxiliary Part Cooling Fan: Closed Loop Control
  • Chamber Exhaust Fan: Closed Loop Control

Sensors

  • Live View Camera: Yes, 1920 x 1080 Included
  • Nozzle Camera: Yes, 1920 x 1080 Included
  • Toolhead Camera: Yes, 1920 x 1080 Included
  • Door Sensor: Yes
  • Filament Run Out Sensor: Yes
  • Filament Odometry: Optional with AMS
  • Filament Tangle: Yes
  • Power Loss Recover: Yes

Electrical Requirements

  • Voltage: 100-120 VAC / 200-240 VAC, 50/60 Hz
  • Max Power: 2200 W@220 V / 1320 W@110 V

Electronics

  • Display: 5-inch 1280 x 720 Touch Screen
  • Connectivity: Wi-Fi | Bambu-Bus
  • Storage: 8GB EMMC and USB Port
  • Control Interface: Touch Screen | APP | PC Application
  • Neural-Network Processing Unit: 2 Tops

Software

  • Slicer: Bambu Studio | Bambu Suite
  • Slicer Supported OS: MacOS | Windows
FREE Resources
FAQs

Can H2D be upgraded to H2D Laser Edition?

The H2D laser full combo has a built-in air pump and air pipe on the back of the printer, and is pre-installed with a BirdsEye camera. The front door, left and right side Laser Protective Windows, and top cover are all designed with laser protection. The packaging list includes a laser module, a cutting module, a smoke exhaust pipe and its adapter, as well as an emergency stop button.

A laser upgrade kit for the non-laser version of H2D is available. The upgrade kit will provide installation instructional videos to help users complete the upgrade smoothly.

It is important to note that the air pump in the upgrade kit is an external air pump, which has a different installation structure from the built-in air pump in the full set. When using it, it can only be installed externally and connected to the machine through an air tube. The upgraded version will have the same functions and processing performance as the original laser version

Are the left and right hotends exactly the same?

Yes, the left and right hotends have identical structures and materials, and can be used interchangeably.

Can I use the A1 series Hotend on the H2D? Conversely, can H2D hotends be used on A1 series printers?

Although the hotend of the H2D series is similar to the A1 hotend in structure , it is not exactly the same.

The H2D hotends are specifically designed for the H2D printer, offering optimised compatibility. For example, they support a larger maximum volumetric flow rate, lower clogging risk, more precise nozzle offset calibration between the left and right hotends, and automatic hotend type recognition via the live camera. Therefore, to ensure optimal print quality, it is strongly recommended not to use A1 hotends on the H2D printer.

Therefore , to ensure you get the best print quality, we strongly recommend that you do not use the A1 hotend for H2D printers.

Purchasing additional H2D hotends for use on A1 printers is feasible. However, you will also need to use the H2D hotend silicone sock.

Can dual nozzle printing support the simultaneous use of different-sized hotends for printing tasks?

Currently, simultaneous use of different-sized nozzles is not supported. If this feature is added in the future, we will provide information through a firmware update.

Is H2D compatible with first generation AMS?

The first-generation AMS has been confirmed to have full plug-and-play compatibility and can be used with the H2D for multi-colour printing, but it does not support the AMS drying function.

Due to the fundamental differences in the feeding mechanism and buffering structure, the H2D does not support the AMS lite.

What is the maximum number of AMS 2 Pro and AMS HT units that the H2D supports? How many colours can it print at most?

The H2D supports a maximum of 4 AMS 2 Pro and 8 AMS HT connected simultaneously, a total of 12 units with 24 slots.

Because H2D is a dual-hotend printer, and in the most extreme scenario, all AMS can be connected to one hotend while the other hotend uses an external spool holder, it can support up to 25 colours.

More FAQs can be found on the Bambu Lab Wiki.
