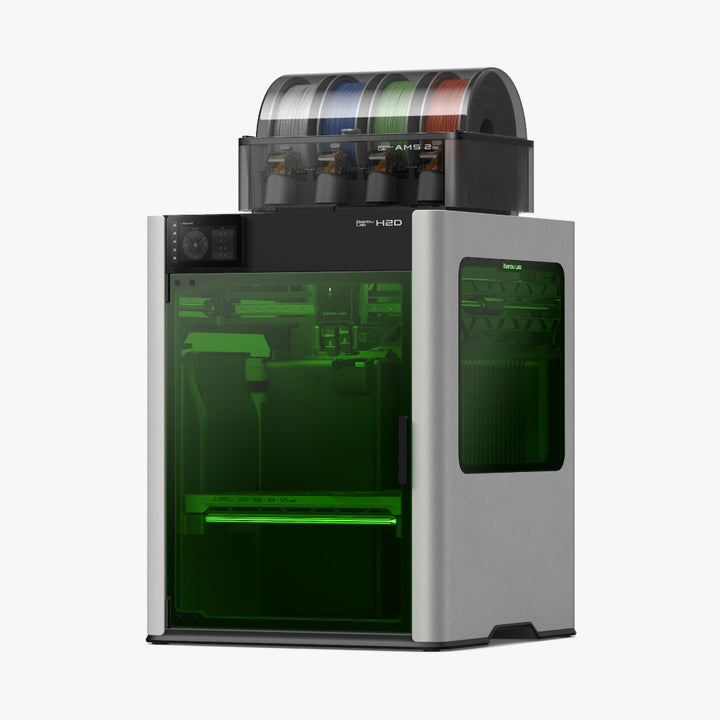

Bambu Lab H2D Laser Combo 40W
The Bambu Lab H2D Laser Combo 40W is a next-generation 3D printer engineered for unmatched versatility and efficiency. Featuring a dual-nozzle system for powerful multi-material and multi-colour printing, it also includes...
The Bambu Lab H2D Laser Combo 40W is a next-generation 3D printer engineered for unmatched versatility and efficiency. Featuring a dual-nozzle system for powerful multi-material and multi-colour printing, it also includes a 40W Laser Module and Cutting/Drawing Module, expanding its capabilities beyond 3D printing to precision laser engraving, cutting, and pen plotting.
Built with Bambu Lab’s signature speed, precision, and reliability, the H2D empowers users to combine materials, finishes, and fabrication methods in a single streamlined workflow — perfect for rapid prototyping, functional parts, and creative projects across education, design, and industry.
Features
Multi-Material PrintingPrint flexible and rigid materials together to create complex interlocking structures and innovative designs beyond the limits of traditional manufacturing. By combining high-performance materials with standard ones, you can cut costs and maximise efficiency, using premium materials only where they’re needed most. |
 |
 |
Dedicated Support MaterialPrinting with supports is easier than ever. Thanks to the H2D’s dual-nozzle system, one nozzle can be dedicated to support material, ensuring stable prints with clean, precise support interfaces. |
Efficient Multi-Colour Printing.Dual-nozzle printing minimises purge cycles in multi-colour jobs, while the H2D’s smart algorithms optimise filament usage to save both time and materials. |
 |
 |
Ultra-Fine Motion AccuracyThe H2D achieves distance-independent 50 µm motion accuracy across the entire workspace—ten times better than its predecessor—thanks to an ultra-precise vision encoder plate paired with 5 µm resolution optical measurements that track and correct toolhead motion. (Vision Encoder sold separately) |
Large Build VolumeWith a build volume of up to 350 x 320 x 325 mm, the H2D makes large-scale projects simple. Its expanded capacity lets you bring even your most ambitious ideas to life. |
 |
 |
350°C Hotend & 65°C Chamber HeatingWith 65°C active chamber heating and a high-temperature hotend reaching 350°C, the H2D provides precise closed-loop temperature control. This system minimises warping and deformation in advanced materials, ensuring strong layer bonding and unlocking their full performance potential. |
600mm/s Print SpeedThe H2D’s high-flow hotend is engineered for reliable printing at speeds up to 600 mm/s. Built to maintain consistent extrusion, it removes flow-rate limitations, ensuring uninterrupted high-speed performance no matter the size or complexity of the print. |
 |
 |
Precise Extrusion ControlBambu Lab’s proprietary PMSM servo architecture creates an intelligent extrusion control system, performing 20 kHz torque, resistance, and position sampling to dynamically adjust electromagnetic torque. This stabilises extrusion while detecting issues such as filament grinding or clogging. |
Smart Nozzle CameraThe H2D featues an AI-powered nozzle camera with macro lens, providing intelligent monitoring that continuously tracks extrusion and instantly detects material buildup, filament shifts, or extrusion failures. |
 |
 |
AI Pre-CheckBefore every print, the H2D’s vision system runs a full pre-flight check. It scans the chamber to detect debris, audits hardware to identify nozzle size and build plate properties, and verifies alignment between hardware settings and slicer parameters for seamless consistency. |
15 Sensors on Filament PathUnlike traditional single-sensor systems, the H2D offers comprehensive material flow monitoring. Along the AMS-to-nozzle path, 15 sensors form an intelligent network that continuously tracks feeding velocity, tension, filament tip position, extruder temperature, and extrusion pressure—creating an industry-leading system for precise filament control. |
 |
 |
Bambu Studio & Bambu Handy AppTake full control of your H2D wherever you are—use Bambu Studio or the Bambu Handy app to monitor prints remotely, record timelapse videos with the onboard camera, and explore new projects from the MakerWorld library. |
Laser Cutting & EngravingThe 40W Laser Module expands your printer beyond 3D printing. With the high-precision module, users can engrave detailed patterns or cut thin materials, unlocking new creative and functional applications in wood, leather, acrylic, and more. |
 |
 |
Drawing & CuttingThe Cutting Module expands your machine’s functionality beyond 3D printing, enabling precise blade cutting for a wide range of materials such as vinyl, paper, fabric, and more. In addition to cutting, the kit also unlocks Draw Mode, allowing the H2D to hold a pen for sketching, outlining, or adding decorative details directly onto your projects. |
Live Spatial AlignmentThe H2D’s BirdsEye camera, powered by advanced computer vision algorithms, achieves top-view alignment accuracy of up to 0.3 mm. This precise spatial calibration ensures the toolpath is positioned exactly where you see it on the material—providing a truly ‘what-you-see-is-what-you-get’ experience. |
 |
 |
Auto ArrangementBy leveraging real-time images from the BirdsEye camera, Bambu Suite can automatically align your project with the actual shape of your material—such as leftover plywood from a previous job. This intelligent feature helps you maximize material usage and minimize waste. |
Laser Safety WindowsThe integrated safety windows provide effective laser protection, allowing safe operation and monitoring without requiring additional goggles. |
 |
 |
Optional Air PurifierAn optional air purifier effectively filters emissions, maintaining clean air quality during indoor laser use. |
Air-AssistHigh-speed airflow cools the laser path to improve surface finish, resulting in cleaner cuts and greater precision. |
 |
 |
3D MeshAdvanced optical height sensing generates a detailed 3D mesh without physical contact, ensuring precise laser performance even on curved surfaces |
Full Auto CalibrationWith a single tap, the system automatically verifies laser focus and measures material height—no manual adjustments required. |
 |
 |
Material CodeSyncThe H2D automatically reads Bambu Lab material QR codes and loads the optimal preset for perfect results. |
Contents
- 1x Bambu Lab H2D Laser Edition
- 1x PEI Build Plate (Pre-installed)
- 1x Spool Holder
- 1x Accessory Box
- 1x Bambu Lab AMS 2 Pro
- 1x Safety Key
- 1x 40W Laser Module
- 1x Cutting Module with Pen Holder
- 1x Laser Platform
- 1x Cutting Platform
- 1x Ventilation Pipe
- Laser & Cutting Materials
- 1x Emergency Stop Button
Weights & Dimensions
- Printer Dimensions: 492 x 514 x 626 mm
- Printer Weight: 31 kg
- Shipping Dimensions: 620 x 620 x 755 mm
- Shipping Weight: 38.5 kg
- Combo Shipping Dimensions: 620 x 620 x 755 mm
- Combo Shipping Weight: 42.3 kg
Body
- Single Nozzle Build Volume: 325 x 320 x 325 mm
- Dual Nozzle Build Volume: 300 x 320 x 325 mm
- Total Volume for Two Nozzles: 350 x 320 x 325 mm
- Chassis & Shell: Aluminum, Steel, Plastic & Glass
Tool Head
- Hotend: All-Metal
- Extruder Gears: Hardened Steel
- Nozzle: Hardened Steel
- Max Nozzle Temp: 350°C
- Nozzle Diameter: 0.4mm
- Filament Cutter: Yes
- Filament Diameter: 1.75mm
- Compatible Filament: PLA | PETG | TPU | ABS | ASA | PVA | PET | PET-CF | PLA-CF | PETG-CF | PA | PA-CF | ASA-CF | PC | BVOH | PPA-CF/GF | PPS | PPS-CF/GF
Heatbed
- Build Plate: Textured PEI
- Max Bed Temp: 120°C
Speed
- Max Travel Speed: 1000 mm/s
- Max Acceleration: 20,000mm/s²
- Max Hot End Flow: 40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
- Max Hot End Flow (High Flow Nozzle): 65 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
Chamber Temperature Control
- Active Chamber Heating: Supported
- Max Temperature: 65°C
Air Purification
- Pre-Filter Grade: G3
- HEPA Filter Grade: H12
- Activated Carbon Filter Type: Granulated Coconut Shell
Cooling
- Part Cooling Fan: Closed Loop Control
- Hot End Fan: Closed Loop Control
- Control Board Fan: Closed Loop Control
- Chamber Temperature Regulator Fan: Closed Loop Control
- Auxiliary Part Cooling Fan: Closed Loop Control
- Chamber Exhaust Fan: Closed Loop Control
Sensors
- Live View Camera: Yes, 1920 x 1080 Included
- Nozzle Camera: Yes, 1920 x 1080 Included
- Toolhead Camera: Yes, 1920 x 1080 Included
- Door Sensor: Yes
- Filament Run Out Sensor: Yes
- Filament Odometry: Optional with AMS
- Filament Tangle: Yes
- Power Loss Recover: Yes
Electrical Requirements
- Voltage: 100-120 VAC / 200-240 VAC, 50/60 Hz
- Max Power: 2200 W@220 V / 1320 W@110 V
Electronics
- Display: 5-inch 1280 x 720 Touch Screen
- Connectivity: Wi-Fi | Bambu-Bus
- Storage: 8GB EMMC and USB Port
- Control Interface: Touch Screen | APP | PC Application
- Neural-Network Processing Unit: 2 Tops
Software
- Slicer: Bambu Studio | Bambu Suite
- Slicer Supported OS: MacOS | Windows
40W Laser Module
- Laser Type: Semiconductor Laser
- Laser Wavelength: (Engraving Laser - 455 nm ± 5 nm Blue Light) | (Height Measuring Laser - 850 nm ± 5 nm Infrared Light)
- Laser Power: 40 W ± 2 W
- Laser Spot Dimension: 0.14 x 0.2 mm
- Working Temperature: 0°C–35°C
- Max Engraving Speed: 1000 mm/s
- Max Cutting Thickness: 15mm (Basswood Plywood)
- Laser Safety Class for Laser Module: Class 4
- Overall Laser Safety Class: Class 1
- Engraving Area: 310 x 250 mm
- XY Positioning Accuracy: < 0.3 mm
- Z Height Measuring Method: Micro Lidar
- Z Height Measuring Accuracy: ± 0.1 mm
- Flame Detection: Supported
- Temperature Detection: Supported
- Door Sensor: Supported
- Laser Module Installation Detection: Supported
- Safety Key: Included
- Ventilation Pipe Adapter Outer Diameter: 100 mm
- Supported Material Types: Wood | Rubber | Metal Sheet | Leather | Dark Acrylic | Stone | and more!
Cutting Module
- Cutting Area: 300 x 285 mm
- Drawing Area: 300 x 255 mm
- Supported Pen Diameter: 10.5 - 12.5 mm
- Cutting Mat Type: LightGrip and StrongGrip Cutting Mats
- Blade Type: 45° x 0.35 mm
- Blade Pressure Range: 50 - 600 gf
- Max Cutting Thickness: 0.5 mm
- Blade and Pen Recognition: Supported
- Cutting Mat Type Detection: Supported
- Supported Image Type: Bitmap | Vector Images
- Supported Material Type: Paper | Vinyl | Leather | and more!
Are the left and right hotends exactly the same?
Yes, the left and right hotends have identical structures and materials, and can be used interchangeably.
Can I use the A1 series Hotend on the H2D? Conversely, can H2D hotends be used on A1 series printers?
Although the hotend of the H2D series is similar to the A1 hotend in structure , it is not exactly the same.
The H2D hotends are specifically designed for the H2D printer, offering optimised compatibility. For example, they support a larger maximum volumetric flow rate, lower clogging risk, more precise nozzle offset calibration between the left and right hotends, and automatic hotend type recognition via the live camera. Therefore, to ensure optimal print quality, it is strongly recommended not to use A1 hotends on the H2D printer.
Therefore , to ensure you get the best print quality, we strongly recommend that you do not use the A1 hotend for H2D printers.
Purchasing additional H2D hotends for use on A1 printers is feasible. However, you will also need to use the H2D hotend silicone sock.
Can dual nozzle printing support the simultaneous use of different-sized hotends for printing tasks?
Currently, simultaneous use of different-sized nozzles is not supported. If this feature is added in the future, we will provide information through a firmware update.
Is H2D compatible with first generation AMS?
The first-generation AMS has been confirmed to have full plug-and-play compatibility and can be used with the H2D for multi-colour printing, but it does not support the AMS drying function.
Due to the fundamental differences in the feeding mechanism and buffering structure, the H2D does not support the AMS lite.
What is the maximum number of AMS 2 Pro and AMS HT units that the H2D supports? How many colours can it print at most?
The H2D supports a maximum of 4 AMS 2 Pro and 8 AMS HT connected simultaneously, a total of 12 units with 24 slots.
Because H2D is a dual-hotend printer, and in the most extreme scenario, all AMS can be connected to one hotend while the other hotend uses an external spool holder, it can support up to 25 colours.
