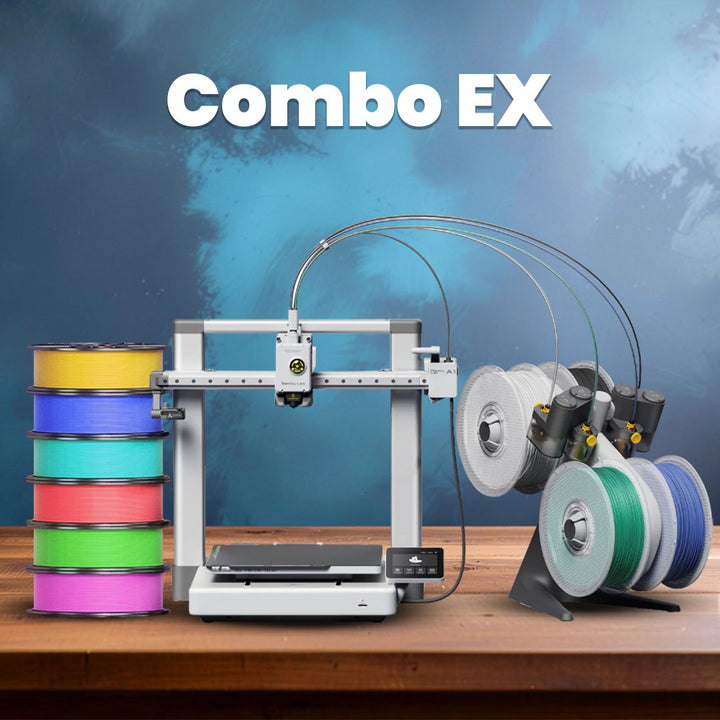

Bambu Lab A1 Combo EX
The Bambu Lab A1 Combo EX is exactly what it sounds like—the A1 Combo with a little extra. With this bundle, you’ll receive the original A1 Combo plus 5 additional spools of...
The Bambu Lab A1 Combo EX is exactly what it sounds like—the A1 Combo with a little extra. With this bundle, you’ll receive the original A1 Combo plus 5 additional spools of filament, so you can start printing right away without missing a beat.
Starter Bundle Includes
-
1x Bambu Lab A1 Combo
-
3x Filament 1.75mm PLA PRO - Flashforge (1kg)* -
1x Filament 1.75mm PLA Matte - Flashforge (1kg)* -
1x Filament 1.75mm PLA Silk - Flashforge (1kg)*
*Various Colours
Weights & Dimensions
- Printer Dimensions: 465 x 410 x 430 mm
- Printer Weight: 8.3 kg
- Shipping Dimensions: 596 x 536 x 325 mm
- Shipping Weight: 13 kg
- Combo Shipping Dimensions: 560 x 540 x 430 mm
- Combo Shipping Weight: 13.5 kg
Body
- Max Build Volume: 256 x 256 x 256 mm
- Chassis & Shell: Steel + Extruded Aluminum
Tool Head
- Hotend: All-Metal
- Extruder Gears: Hardened Steel
- Nozzle: Stainless Steel
- Max Nozzle Temp: 300°C
- Nozzle Diameter: 0.4mm
- Filament Cutter: Yes
- Filament Diameter: 1.75mm
- Compatible Filament: PLA | PETG | TPU | PLA-CF | PETG-CF | PVA
Heatbed
- Build Plate: Textured PEI
- Max Bed Temp: 100°C
Speed
- Max Travel Speed: 500 mm/s
- Max Acceleration: 10,000mm/s²
- Max Hot End Flow: 28 mm³/s @ABS (Model: 150 x 150 mm single wall;
Material: Bambu ABS; Temperature: 280°C)
Cooling
- Part Cooling Fan: Closed Loop Control
- Hot End Fan: Closed Loop Control
Sensors
- Monitoring Camera: Yes, Low Rate Camera (up to 1080P)
- Filament Run Out Sensor: Yes
- Filament Odometry: Yes
- Filament Tangle: Yes
- Power Loss Recover: Yes
Electrical Requirements
- Voltage: 100-240 VAC, 50/60 Hz
- Max Power: 1300W@220V | 350W@110V
Electronics
- Display: 3.5 inches 320 x 240 IPS Touch Screen
- Connectivity: Wi-Fi | Bambu-Bus
- Storage: Micro SD Card
- Control Interface: Touch Screen | APP | PC Application
- Motion Controller: Dual-Core Cortex M4
Software
- Slicer: Bambu Studio
- Slicer Supported OS: MacOS | Windows
What's the difference between AMS and AMS lite? Does the AMS lite work with any Bambu printer or even other (brand) printers?
AMS is enclosed and the AMS lite is non-enclosed.
AMS is incompatible with the A1 mini. If you want a multi-color print using A1 mini, you must use the AMS lite.
AMS lite is incompatible with the X1 or P1 printer and other (brand) printers. If you want a multi-colour print using an X1 or P1 printer, you must use AMS.
What is the maximum print size of the A1?
256 x 256 x 256 mm
Can I use the AMS on the A1?
No, AMS is incompatible with the A1. You must use the AMS lite if you want a multi-color print using A1.
Can I use multiple AMS lite units with the A1 for up to 16 colour prints?
The A1 can only support one AMS lite, which means it can print with a maximum of 4 colours.
The A1 supports a maximum of one AMS lite, so why is an extra 4-pin connector available?
This interface is reserved for future product expansions and/or additional functionalities.
Can A1 print ABS and ASA?
Due to its open-frame design and lower chamber temperature, A1 is prone to reduced interlayer strength when using high-temperature filaments. This leads to increased warping risks and larger warping amplitudes for large-sized models. Therefore, it is not recommended to use ABS, ASA, PC, PA, PA-CF/GF, PET-CF/GF, PPA-CF/GF, and other conventional high-temperature materials on A1 for printing models that require high interlayer strength with large sizes and/or high infill densities. However, these high-temperature materials can be used on A1 for printing small-sized models with low infill densities. The printing results may vary depending on the filaments' dry and wet state, the characteristics of the model itself, printing parameters, and the ambient temperature.
Furthermore, ABS and ASA release harmful and irritating gases during printing. Therefore, they require higher air filtration and ventilation. As A1 is an open-frame printer without air-tight sealing or purification capabilities, it is recommended not to use A1 for printing ABS and ASA unless in well-ventilated environments at a safe distance from people.
Can the A1 print without a microSD card & use only Bambu Studio/Handy?
No, the A1 does not have built-in memory, so you need to insert a micro SD card to initiate a print. The printer comes with a pre-installed 32 GB micro SD card.
What is the maximum size and format microSD card the A1 can use?
The A1 supports a micro SD card of up to 2TB if formatted using the printer option.
Where is the best place to position the purge tower?
Near the purge wiper - Left side (Thus avoiding waste or scaps getting onto the bed or z-axis and saving the toolhead's travel time during filament changes.)
