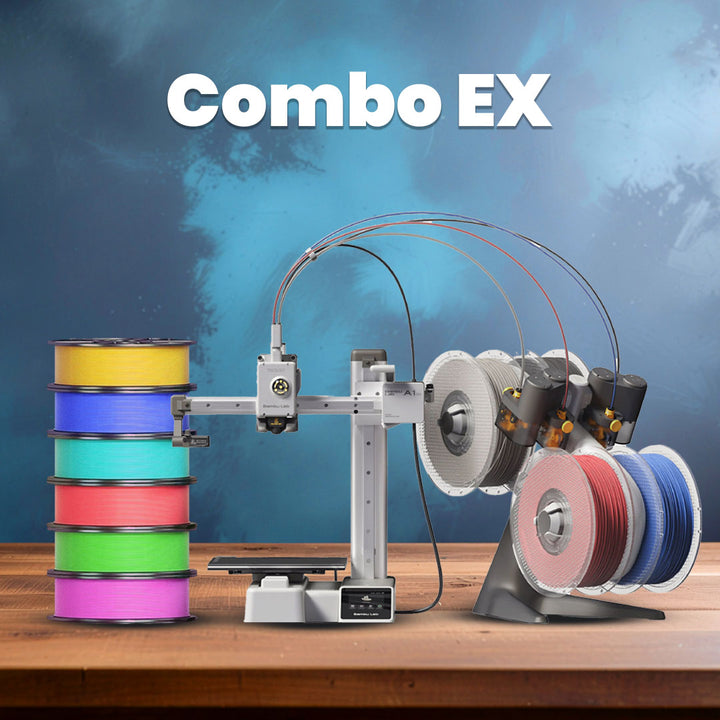

Bambu Lab A1 mini Combo EX
The Bambu Lab A1 mini Combo EX is exactly what it sounds like—the A1 mini Combo with a little extra. With this bundle, you’ll receive the original A1 mini Combo plus 5...
The Bambu Lab A1 mini Combo EX is exactly what it sounds like—the A1 mini Combo with a little extra. With this bundle, you’ll receive the original A1 mini Combo plus 5 additional spools of filament, so you can start printing right away without missing a beat.
Starter Bundle Includes
-
1x Bambu Lab A1 mini Combo
-
3x Filament 1.75mm PLA PRO - Flashforge (1kg)* -
1x Filament 1.75mm PLA Matte - Flashforge (1kg)* -
1x Filament 1.75mm PLA Silk - Flashforge (1kg)*
*Various Colours
Weights & Dimensions
- Printer Dimensions: 347 x 315 x 365 mm
- Printer Weight: 5.5 kg
- Shipping Dimensions: 385 x 430 x 460 mm
- Shipping Weight: 8.2 kg
- Combo Shipping Dimensions: 385 x 430 x 495 mm
- Combo Shipping Weight: 10.2 kg
Body
- Max Build Volume: 180 x 180 x 180 mm
- Chassis & Shell: Steel + Extruded Aluminum
Tool Head
- Hotend: All-Metal
- Extruder Gears: Hardened Steel
- Nozzle: Stainless Steel
- Max Nozzle Temp: 300°C
- Nozzle Diameter: 0.4mm
- Filament Cutter: Yes
- Filament Diameter: 1.75mm
- Compatible Filament: PLA | PETG | TPU | PLA-CF | PETG-CF | PVA
Heatbed
- Build Plate: Textured PEI
- Max Bed Temp: 80°C
Speed
- Max Travel Speed: 500 mm/s
- Max Acceleration: 10,000mm/s²
- Max Hot End Flow: 28 mm³/s @ABS (Model: 150 x 150 mm single wall;
Material: Bambu ABS; Temperature: 280°C)
Cooling
- Part Cooling Fan: Closed Loop Control
- Hot End Fan: Closed Loop Control
- Control Board Fan: Closed Loop Control
Sensors
- Monitoring Camera: Yes, Low Rate Camera (up to 1080P)
- Filament Run Out Sensor: Yes
- Filament Odometry: Yes
- Filament Tangle: Yes
- Power Loss Recover: Yes
Electrical Requirements
- Voltage: 100-240 VAC, 50/60 Hz
- Max Power: 150W
Electronics
- Display: 2.4 inches 320 x 240 IPS Touch Screen
- Connectivity: Wi-Fi | Bambu-Bus
- Storage: Micro SD Card
- Control Interface: Touch Screen | APP | PC Application
- Motion Controller: Dual-Core Cortex M4
Software
- Slicer: Bambu Studio
- Slicer Supported OS: MacOS | Windows
What's the difference between AMS and AMS lite? Does the AMS lite work with any Bambu printer or even other (brand) printers?
AMS is enclosed and the AMS lite is non-enclosed.
AMS is incompatible with the A1 mini. If you want a multi-colour print using A1 mini, you must use the AMS lite.
AMS lite is incompatible with the X1 or P1 printer and other (brand) printers. If you want a multi-colour print using an X1 or P1 printer, you must use AMS.
What materials can the A1 mini print?
The A1 mini can print most of the materials on the market that don't require an enclosure, such as PLA, PETG, TPU, and their support filament. It is not recommended to print filaments such as ABS, ASA, PC, PA,and PET that require higher bed and chamber temperatures.
What is the maximum print size of the A1 mini?
180 x 180 x 180 mm.
Can you use multiple AMS lite units with the A1 mini for up to 16 colour prints?
The A1 mini can only support one AMS lite, allowing a maximum of 4 colours for printing.
The A1 mini supports a maximum of one AMS lite, so why is an extra 4-pin connector available?
This interface is reserved for future product expansions and/or additional functionalities.
Can the A1 mini print without a microSD card & use only Bambu Studio/Handy?
No, the A1 mini does not have built-in memory, so you need to insert a micro SD card to initiate a print. The printer comes with a pre-installed 32 GB micro SD card.
What is the maximum size and format microSD card the A1 mini can use?
The A1 mini supports a micro SD card of up to 2TB if formatted using the printer option.
Where is the best place to position the purge tower?
Near the purge wiper - Left side (Thus avoiding waste or scaps getting onto the bed or z-axis and saving the toolhead's travel time during filament changes.)
