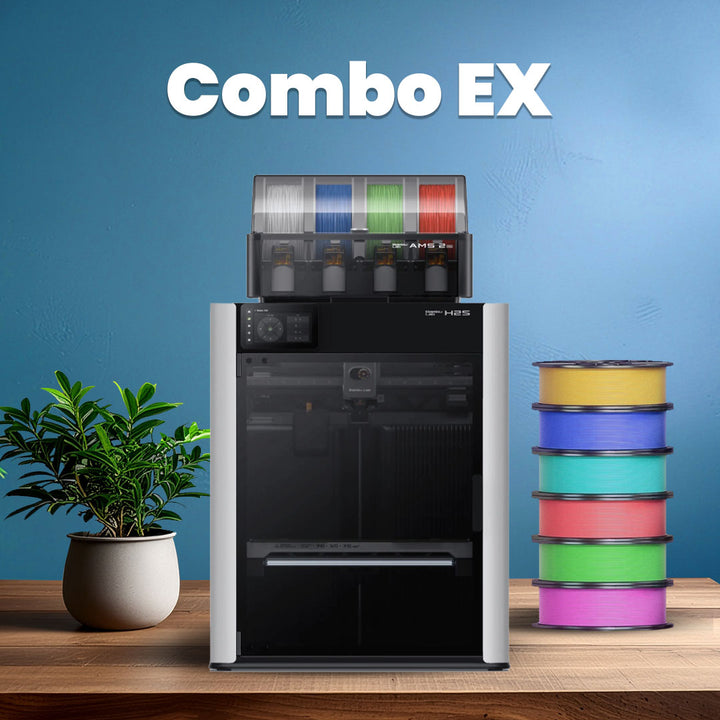

Bambu Lab H2S Combo EX
The Bambu Lab H2S Combo EX is exactly what it sounds like—the H2S Combo with a little extra. With this bundle, you’ll receive the original H2S Combo plus 5 additional spools...
The Bambu Lab H2S Combo EX is exactly what it sounds like—the H2S Combo with a little extra. With this bundle, you’ll receive the original H2S Combo plus 5 additional spools of filament, so you can start printing right away without missing a beat.
Starter Bundle Includes
-
1x Bambu Lab H2S Combo
-
3x Filament 1.75mm PLA PRO - Flashforge (1kg)* -
1x Filament 1.75mm PLA Matte - Flashforge (1kg)* -
1x Filament 1.75mm PLA Silk - Flashforge (1kg)*
*Various Colours
Optional
Weights & Dimensions
- Printer Dimensions: 492 x 514 x 626 mm
- Printer Weight: 30 kg
- Shipping Dimensions: 620 x 620 x 755 mm
- Shipping Weight: 37.5 kg
- Combo Shipping Dimensions: 620 x 620 x 755 mm
- Combo Shipping Weight: 40.7 kg
Body
- Max Build Volume: 340 x 320 x 340 mm
- Chassis & Shell: Aluminum, Steel, Plastic & Glass
Tool Head
- Hotend: All-Metal
- Extruder Gears: Hardened Steel
- Nozzle: Hardened Steel
- Max Nozzle Temp: 350°C
- Nozzle Diameter: 0.4mm
- Filament Cutter: Yes
- Filament Diameter: 1.75mm
- Compatible Filament: PLA | PETG | TPU | ABS | ASA | PVA | PET | PET-CF | PLA-CF | PETG-CF | PA | PA-CF | ASA-CF | PC | BVOH | PPA-CF/GF | PPS | PPS-CF/GF
Heatbed
- Build Plate: Textured PEI
- Max Bed Temp: 120°C
Speed
- Max Travel Speed: 1000 mm/s
- Max Acceleration: 20,000mm/s²
- Max Hot End Flow: 40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
- Max Hot End Flow (High Flow Nozzle): 65 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
Chamber Temperature Control
- Active Chamber Heating: Supported
- Max Temperature: 65°C
Air Purification
- Pre-Filter Grade: G3
- HEPA Filter Grade: H12
- Activated Carbon Filter Type: Granulated Coconut Shell
- VOC Filtration: Superior
- Particulate Matter Filtration: Supported
Cooling
- Part Cooling Fan: Closed Loop Control
- Hot End Fan: Closed Loop Control
- Control Board Fan: Closed Loop Control
- Chamber Temperature Regulator Fan: Closed Loop Control
- Auxiliary Part Cooling Fan: Closed Loop Control
- Chamber Exhaust Fan: Closed Loop Control
Sensors
- Live View Camera: Yes, 1920 x 1080 Included
- Nozzle Camera: Yes, 1920 x 1080 Included
- Toolhead Camera: Yes, 1920 x 1080 Included
- Door Sensor: Yes
- Filament Run Out Sensor: Yes
- Filament Odometry: Optional with AMS
- Filament Tangle: Yes
- Power Loss Recover: Yes
Electrical Requirements
- Voltage: 100-120 VAC / 200-240 VAC, 50/60 Hz
- Max Power: 2050 W@220 V / 1170 W@110 V
Electronics
- Display: 5-inch 1280 x 720 Touch Screen
- Connectivity: Wi-Fi | Bambu-Bus
- Storage: 8GB EMMC and USB Port
- Control Interface: Touch Screen | APP | PC Application
- Neural-Network Processing Unit: 2 Tops
Software
- Slicer: Bambu Studio | Bambu Suite
- Slicer Supported OS: MacOS | Windows
Does the H2S support laser and cutting functions?
It supports 10W laser and cutting but does not support 40W laser.
Can a non-laser H2S be upgraded to a laser H2S?
Yes. The upgrade kit and its installation guide will be available some time after the product launch. Note that the upgrade kit uses an external air pump, which differs in installation structure from the built-in air pump. It must be installed externally and connected to the machine via an air tube. The upgraded printer has the same functionality and processing performance as the laser version.
Can the H2S be upgraded to an H2D?
No, it is recommended to choose the model that suits your needs when placing an order.
Is the H2S compatible with the first-generation AMS or AMS lite?
The first-generation AMS is fully plug-and-play compatible with the H2S for multi-colour printing but does not support AMS drying.
Due to fundamental differences in the feeding mechanism and buffer structure, the H2S does not support AMS lite.
How many AMS 2 Pro and AMS HT units can the H2S support, and how many colours can it print?
The H2S supports up to 4 AMS 2 Pro and 8 AMS HT units, totaling 12 units with 24 filament slots, enabling up to 24-colour printing.
Are the hotend and silicone sock of the H2S compatible with the H2D or A1?
The H2S hotend and silicone sock are compatible with the H2D. While structurally similar to the A1 hotend, they are not fully compatible. For optimal print quality, we strongly recommend not using the A1 hotend on H2 series printers. Using an H2 series hotend on an A1 printer is feasible, but it requires the H2 series silicone sock.
Are the H2S and A1 series tool heads the same? Can the components on the tool head be shared with the A1 series?
The H2S tool head features a completely new design, with optimised and upgraded components, including the extruder motor, filament drive wheel, hotend heating assembly, and cooling fan. As a result, the components on the H2S tool head are not compatible with the A1 series, except for the cutter blade.
Are the build plates of the H2S and H2D compatible?
Yes, they are compatible.
