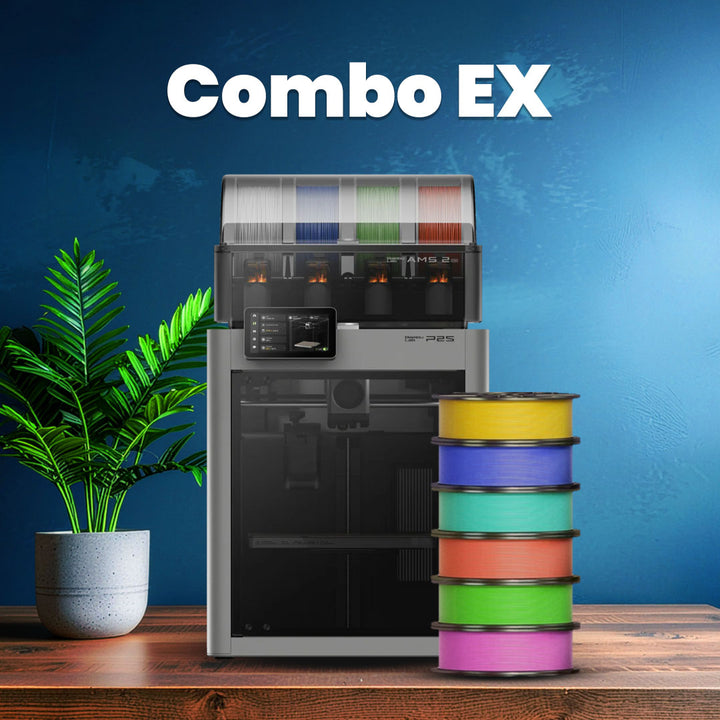

Bambu Lab P2S Combo EX

Weights & Dimensions

• Printer Dimensions: 392 x 406 x 478 mm
• Printer Weight:
• Shipping Dimensions:
• Shipping Weight:
• Combo Shipping Dimensions:
• Combo Shipping Weight:

Body

• Max Build Volume: 256 x 256 x 256 mm
• Chassis & Shell: Plastic & Steel
• Outer Frame: Plastic & Glass

Tool Head

• Extruder Gear: Hardened Steel
• Nozzle: Hardened Steel
• Max Nozzle Temp: 300°C
• Nozzle Diameter: 0.4mm
• Filament Cutter: Yes
• Filament Diameter: 1.75mm
• Extruder Motor: Bambu Lab High-precision Permanent Magnet Synchronous Motor
• Compatible Filament: PLA | PETG | TPU | ABS | ASA | PVA | PET | PET-CF | PLA-CF | PETG-CF | PA | PA-CF | ASA-CF | PC | PPA-CF

Heatbed

• Build Plate: Textured PEI
• Max Bed Temp: 110°C

Speed

• Max Travel Speed: 600 mm/s
• Max Acceleration: 20,000mm/s²
• Max Hot End Flow: 40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)

Filtration

• Filter Type: Activated Carbon
• VOC Filtration: Supported
• Particulate Matter Filtration: Supported

Cooling

• Part Cooling Fan: Closed Loop Control
• Hot End Fan: Closed Loop Control
• Control Board Fan: Closed Loop Control
• Auxiliary Part Cooling Fan: Closed Loop Control

Sensors

• Live View Camera: Yes, 1920 x 1080; 30 fps HD, Included
• Door Sensor: Supported
• Filament Run Out Sensor: Supported
• Filament Odometry: Optional with AMS
• Filament Tangle: Supported
• Power Loss Recover: Supported

Electrical Requirements

• Voltage: 100-120 VAC / 200-240 VAC, 50/60 Hz
• Max Power: 1200 W@220 V / 1000 W@110 V
• PLA Steady-State Power: 200 W@220 V / 200 W@110 V（PLA printing

Electronics

• Display: 5-inch 854 x 480 Touch Screen
• Connectivity: Wi-Fi
• Storage: 8GB EMMC and USB Port
• Control Interface: Touch Screen | APP | PC Application
• Neural-Network Processing Unit: 2 Tops
• Motion Controller: Dual-core Cortex-M4 and Single-core Cortex-M7
• Application Processor: Quad-core 1.5 GHz ARM A7

Software

• Slicer: Bambu Studio
• Slicer Supported OS: MacOS | Windows

• Bambu Studio Slicer
• Bambu Handy App (iOS)
• Bambu Handy App (Android)
• Official Wiki
• MakerWorld

What materials are the P2S pre-installed extruder gears and nozzle made of?

Hardened steel.

Does the P2S require an external power supply to use the dry filament function when connected to the AMS 2 Pro?

You can use the AMS 2 Pro's drying function while the entire machine is in standby, though printing-related functions will be paused during drying. If you need to dry filament while printing, you'll need to purchase a Bambu Lab official power adapter to power the AMS 2 Pro.

Are the P2S buildplate and the X/P/A series buildplates compatible?

The P2S buildplate's recognition function has been optimised. Older build plates do not support the type recognition feature, but their external dimensions are consistent, so they can still be used for printing.

The left side of the P2S has some mounting points. Does it support installing an auxiliary part cooling fan?

You can purchase an official auxiliary cooling fan for upgrading.

Can the P2S use the nozzle of A1 and H2D?

It's compatible with H2D nozzles but not with A1 nozzles.

How many AMS units can the P2S connect to at most?

It supports connecting to 4 AMS 2 Pro units and 4 AMS HT units, totaling 8 AMS units with 20 slots. This means it supports up to 20-colour printing.

Does the P2S support chamber temperature control, and how is the temperature controlled?

The P2S does not have an active chamber heating function, but it can regulate chamber temperature through its enclosed chamber and automatic switching flap between internal and external circulation.

Why did the P2S stop using carbon rods?

To allow for easier maintenance. Dirt residual is much simpler to clean off the surface of a smooth rod.

Will the P1S stop being sold?

There are no plans for that at the moment. Please stay tuned for official announcements.
