DF Robot micro: Maqueen Robot Plus V3 for the BBC micro:bit
The Maqueen Plus V3 is a cutting-edge educational robot designed to transform STEM learning and robotics competitions for students in primary and secondary schools. It functions through a sophisticated integration of...
Required products - sold separately
The Maqueen Plus V3 is a cutting-edge educational robot designed to transform STEM learning and robotics competitions for students in primary and secondary schools. It functions through a sophisticated integration of advanced sensors and control systems. Equipped with a high-performance matrix laser ranging sensor, it excels in environmental sensing and awareness. Precision motor encoders paired with PID control algorithms ensure highly accurate motion and maneuverability.
Additionally, the robot includes built-in algorithms capable of handling complex tasks such as line-following and intersection detection. These features empower educators and students to explore more dynamic, challenging, and interactive robotics applications in educational environments.
Features
Precise NavigationThe Maqueen Plus V3 features a high-precision matrix laser ranging sensor, a major upgrade over standard ultrasonic models. With accuracy around ±11mm for white targets at 20–200mm and speeds up to 60Hz in 4x4 mode, it scans a 60-degree field of view to detect and locate obstacles. This enables smart path planning and advanced obstacle avoidance for reliable autonomous navigation. |
 |
 |
Built-In AlgorithmsStreamline line-tracking and junction navigation with built-in algorithms. These onboard features make it easier to learn core robotics skills while enabling real-time recognition of crossroads and T-junctions. This supports more complex challenges and diverse competitions. Since these functions run independently, the main controller stays free for other tasks. |

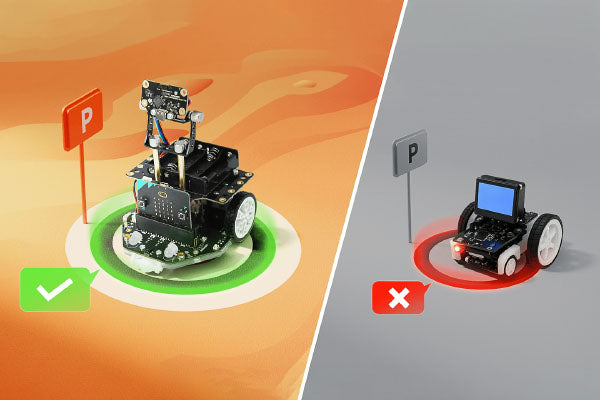

Motor Encoders & PID ControlUnlike many educational robots, the Maqueen Plus V3 uses high-precision motor encoders and PID control for accurate motion. This eliminates trial-and-error tuning and ensures consistent, reliable navigation—ideal for both learning and competitions. |
 |
 |
Enhanced Light InteractionEnhanced interactivity is achieved through dual light intensity sensors, enabling functions such as light-following and automatic headlight activation. These are complemented by vivid, programmable RGB headlights and ambient lighting, which not only inspire creativity but also make the learning experience more immersive and enjoyable. |
Detachable Metal MotorsThe Maqueen Plus V3 uses rigorously tested, enclosed metal motors for reliable, smooth performance and protection against debris. Its detachable motor design allows quick replacement—ideal for demanding educational and competitive use. A built-in voltage regulator keeps speed consistent even as battery power drops, ensuring stable, uninterrupted operation. |
 |
Contents
- 1x Maqueen Plus V3 Baseboard
- 2x Metal Motor with Encoder and Connection Cable (pre-installed)
- 1x Battery Holder
- 1x Matrix Laser Sensor
- 1x PH2.0 - 4P Sensor Connection Cable
- 2x Wheels
- 1x Line Following Map
- 1x Screwdriver
- 1x Metal Support Frame
- 5x 35mm Mounting Copper Pillars
- 5x M3 Mounting Screws
- 4x M3 Thumb Screws
Power
- Battery (AA): AA 3.5V - 6V, 4 AA batteries, 1.5V dry batteries or 1.2V nickel-metal hydride batteries
- Battery (LIPO): 3.5V - 4.2V, 1 rechargeable 18650 lithium battery
- Charging port: USB Type-C | MicroUSB
- Charging voltage: 5V 1A
- Battery reverse connection protection: Supported
- Battery level display: 5-segment digital tube
- Charging display: Digital tube (shows red during charging, shows green when fully charged, supports charging while powered off)
Line Tracking Sensor
- Number of sensors: 5
- Calibration button: Yes, 1
- Output value of sensors: Switching quantity | Analog quantity
- Intersection recognition function: Crossroad | T-shaped | Right turn and Straight intersection | Left turn and Straight intersection
- Built-in line following function of the chip: Supported
- Built-in line following speed of the chip: 1 -2 (a total of 5 gears)
RGB Light
- Number of WS2812 RGB: 4
- Number of display colours of WS2812 RGB light: R255 x G255 x B255
- Number of RGB car lights: 2
- Display colours of RGB car lights: Red | Green | Yellow | Blue | Purple | Cyan | White
Light Sensor
- Number of sensors: 2
- Data range: 0 - 1023
Matrix Laser Sensor
- Number of sensors: 1
- Supply voltage: 3.3V - 5V
- Data interface: I2C | UART | USB
- Interface form: PH2.0 - 4P (Gravity wire sequence) | USB Type-C
- Number of matrices: 8 x 8 (64 measurement points)
- Function mode: Matrix measurement mode | Intelligent obstacle avoidance mode
- I2C Address: Four adjustable, 0x30 | 0x31 | x32 | x33
- Firmware update: USB interface update
- Ranging mode: Continuous ranging
- Ranging speed: 15Hz
- Ranging range: 20 - 4000 mm
- Ranging accuracy:
- Within the range of 20 - 200mm, the accuracy for white targets is ±11mm, for light gray targets is ±12mm, and for gray targets is ±12mm
- within the range of 200 - 4000mm, the accuracy for white targets is ±5%, for light gray targets is ±6%, and for gray targets is ±6%
- Ranging angle: Horizontal 60° | Vertical 60° | Diagonal 90°
- Laser safety level: Class 1
Motor
- Number of motors: 2
- Motor model: N20 metal motor
- Motor interface: PH2.0 - 2P
- Motor power supply: Independent 5V regulated power supply
- Motor disassembly method: Fixed and disassembled by screws
Motor Encoder & PID
- Number of encoders: 2
- Encoder sensing method: Magnetic induction
- Encoder resolution: 4-line encoder
- PID control: Distance and angle control
- Speed measurement unit: Centimeters per minute
Infrared Receiver & Buzzer
- Number of infrared receiver sensors: 1
- Number of buzzers: 1
Expansion Interface & Other Configurations
- Number of metal bracket parts: 2
- Metal bracket adjustment axis: 1 axis
- Metal bracket adjustment angle: 270°
- Bracket adjustment method: 4x M3 metal hand-twisted screws
- Number of PCB threaded interfaces: 2
- Firmware upgrade interface and button: 1
- Number of extended GPIOs: 14
- Bottom acrylic protection: 1
