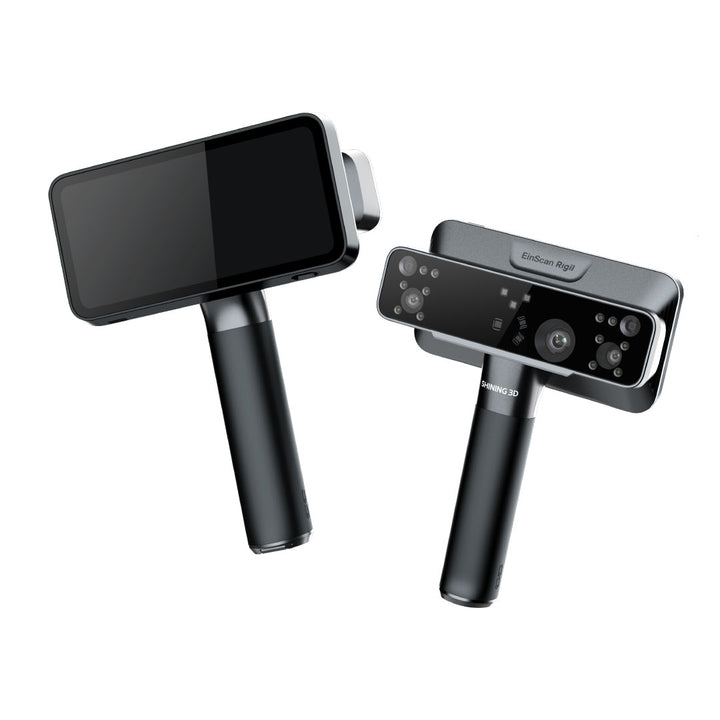

EinScan Rigil Handheld 3D Scanner
- 3 Work Modes: Standalone & Wireless PC & Wired PC
- Hybrid Light Source: Blue Laser + IR VCSEL
- Marker-Free Laser Scanning
- Full-Wireless Workflow
The new EinScan Rigil handheld 3D scanner is a breakthrough in portable scanning, offering a hybrid light system that combines crossed and parallel blue laser lines with infrared VCSEL, alongside a built‑in computing platform and tri-mode connectivity (standalone, wireless PC, and wired), for unmatched precision, speed, and flexibility in professional 3D scanning applications.
Benefits
- 3 Work Modes
- Hybrid Light Sources
- Marker-Free Laser Scanning
- Full-Wireless Workflow
- Powerful Hardware
- Dynamic Laser Switching
Applications
- Automotive Aftermarket & Engineering
- Cultural Creation & Art Customization
- Research & Education
Features
3 Work ModesThe EinScan Rigil provides three different operation modes, delivering optimal performance and versatility to meet your scanning needs.
|
 |
 |
Hybrid Light SourceTwo distinct camera groups are specially designed to capture different types of light sources effectively.
|
Laser HD ModeDelivers precise models featuring volumetric accuracy of 0.04 + 0.06 mm/m and a geometric resolution reaching up to 0.05 mm.
|
 |
 |
Dynamic Laser SwitchingAllows switching between two laser scan modes during use, enabling data merging to combine speed and detail within a single scanning session. |
IR Rapid ModeThe VCSEL infrared technology enables efficient scanning with broad coverage, ideal for medium to large objects.
|
 |
 |
Marker-Free Laser ScanningThe EinScan Rigil includes a unique tracking algorithm that supports marker-free blue laser scanning via a Laser + IR hybrid mode in the EXScan Rigil software. This approach offers greater efficiency compared to traditional marker-based scanning and delivers higher data quality than standard marker-free IR scanning. |
Wireless Workflow
|
 |
 |
Reliable Indoor & Outdoor Scanning
|
Powerful Hardware
|
 |
 |
Full Colour Texture ScanningFeaturing a 5MP high-definition camera, the EinScan Rigil captures detailed textures with high fidelity, helping designers, engineers, and artists preserve accurate model details for improved analysis and creative work. |
- Weight: 870 g
- Dimensions: 233 x 180 x 73 mm
- Camera Resolution: 3D: 2.3MP x 2 | 1.3MP x 2 | Texture: 5MP
- Output Formats: STL | OBJ | PLY | 3MF | ASC
- Laser Class: Class II
- Operating Temperature Range: -10°C ~ 40°C
- Certifications: CE | FCC | ROHS | WEEE | FDA | SRRC | IP50
- Interface: USB Type-C
- Power Source: 2x 6000mAh Batteries, Supports 60W-PD3.0 Charger
- Work Modes: Wireless Standalone | PC Wireless | PC Wired
- Hardware:
- CPU: 8 Core, 2.4GHz
- Hard Drive: 1TB SSD ROM
- RAM: 32GB DDR5
- Touch Screen: 6.4 inch 2K AMOLED
Laser HD Scan Mode
- Light Source: 19+19 crossed laser lines | 7 blue laser parallel lines
- Resolution: 0.05 ~ 10 mm
- Scanning Speed: 4,400,000 points/s | 940,000 points/s
- Working Distance: 170 ~ 550 mm
- Alignment Modes: Global Markers | Markers | Features | Hybrid
- Volumetric Accuracy: Up to 0.04 + 0.06 mm/ m
IR Rapid Scan Mode
- Light Source: IR VCSEL
- Resolution: 0.2 ~ 10 mm
- Scanning Speed: 1,600,000 points/s
- Working Distance: 160 ~ 1500 mm
- Alignment Modes: Global Markers | Markers | Features | Texture | Hybrid
- Volumetric Accuracy: Up to 0.1 + 0.3 mm/m
Recommended PC Configuration
- Operating System: Win 10 | 11, 64 bit
- CPU: Intel I7-11800H
- GPU: NVIDIA GTX1060
- VRAM: 6GB
- RAM: 32GB
Why choose EinScan Rigil?
EinScan Rigil is designed to comprehensively address the 3D modeling needs of prosumers in the automotive aftermarket. It significantly enhances efficiency in generating high-quality 3D models, combining fast scanning capabilities, streamlined professional workflows, lightweight computing solutions, and rich data editing functions.
Can different laser lines be switched?
EinScan Rigil's 19 + 19 crossed laser lines and 7 parallel laser lines are switchable during the scanning process, and data captured by each mode can be merged together to achieve speed and detail in one scanning project.
What are the three working modes of this product?
EinScan Rigil has three working modes:
Standalone Mode: All scanning and processing tasks are completed directly on the hardware, delivering exceptional portability and ease of use.
Wireless PC Mode: Leveraging built-in Wi-Fi 6, this mode enables seamless wireless scanning and allows connection to a computer for maximum computing power, optimizing performance for complex tasks.
Wired PC Mode: Connect to PC with USB type-C cable, maintaining availability and maximum stability in complex network environments or under restricted network conditions.
What is the device's power supply method?
The device is powered by 2 x 6000mAh replaceable batteries, which can be quickly replaced (but currently does not support hot swapping). It also supports USB Type-C power supply while charging and using simultaneously.
