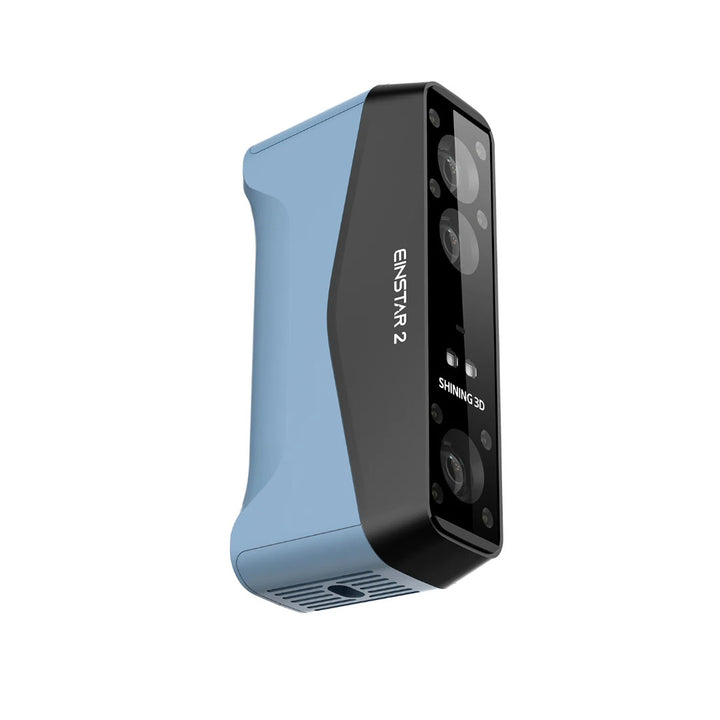

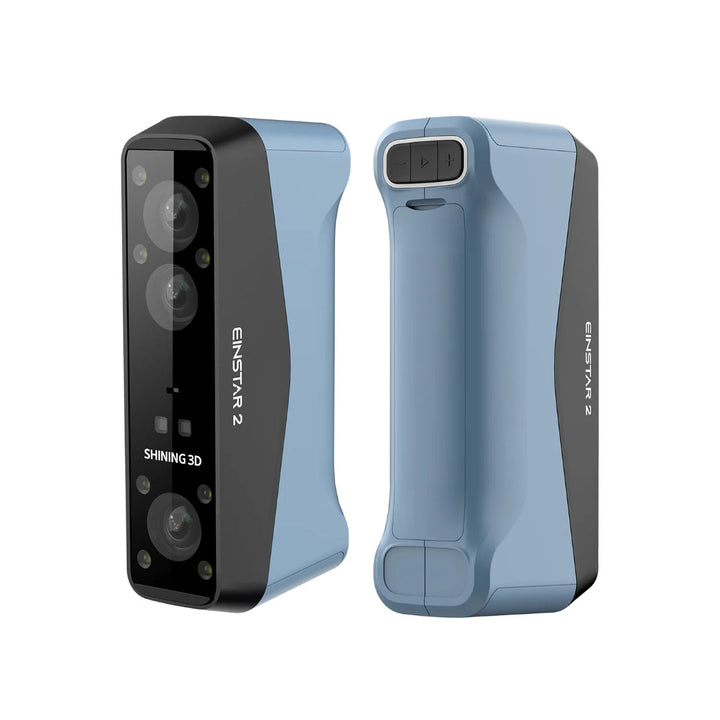

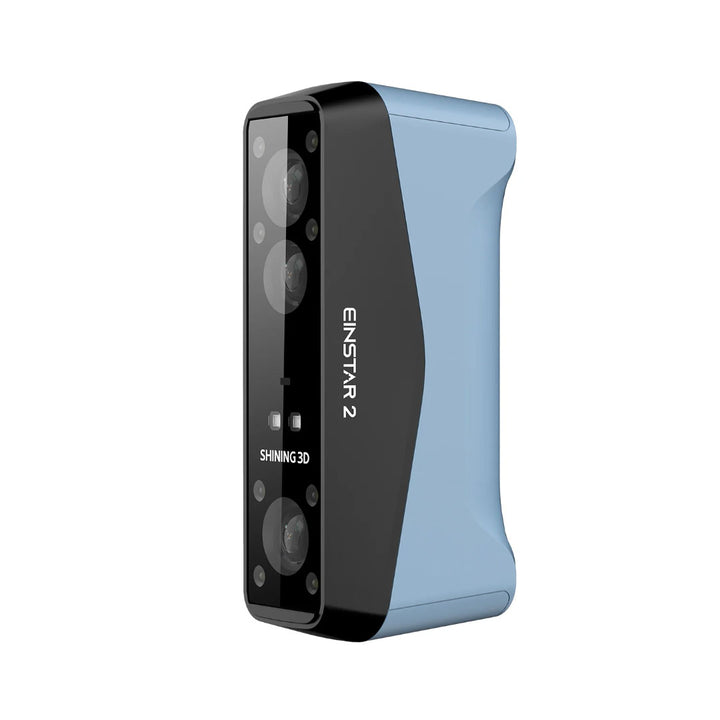

EinStar 2 Handheld 3D Scanner
- Blue laser and Infrared VCSEL
- Wireless Scanning
- High-Speed Scanning of up to 90 fps
- EXStar Hub
The EinStar 2 is a next-generation, wireless hybrid-light 3D scanner that combines infrared VCSEL and blue‑laser technology to deliver high-fidelity, full‑colour scans of both small, detailed items and larger, complex surfaces — all in a lightweight, cable‑free design that’s optimised for creative, educational, and field applications.
Benefits
- Truly wireles, freedom from cables & hubs
- Up to 3 hours of runtime
- Palm-sized body
- Up to 2,500,000 points/s scanning speed
Applications
- 3D Printing & Personal Manufacturing
- Automotive Aftermarket & Engineering
- Cultural Creation & Art Customization
Features
Hybrid Light Source
|
 |
 |
WirelessEquipped with a swappable built-in battery that delivers up to 3 hours of continuous scanning, offering true portability without the need for cables or an external hub—allowing you to scan whenever and wherever inspiration strikes. For environments with potential Wi-Fi interference, a wired connection option is also available. |
Palm-Sized DesignSleek, lightweight, and built for comfort, the redesigned structure weighs just 420g — making it the perfect scanning companion wherever your work takes you. |
 |
 |
No Spray RequiredThe EinStar 2 effortlessly adapts to a wide variety of materials, allowing you to scan black or reflective objects directly—no spray required. Save time, avoid the mess, and achieve precise results instantly. |
Outdoor UseWith dependable performance in bright and challenging environments, the EinStar 2 takes 3D scanning beyond the studio and into the real world. Whether indoors or outdoors, it captures sharp, reliable data wherever you go. Its Laser HD mode operates effectively in lighting up to 110,000 lux, while IR Rapid mode handles up to 70,000 lux, ensuring consistent scan quality even in high-brightness conditions. |
 |
 |
Full Body ScanThe infrared light is eye-safe and provides a comfortable scanning experience, capturing full-body data in as little as 60 seconds. |
Vivid ColourThe integrated RGB camera captures rich, true-to-life colour with every scan, making it ideal for digitising artwork and creating immersive VR and AR experiences. |
 |
 |
EXStar Hub SoftwareEXStar Hub is a user-friendly software platform designed for use with the EinStar Rockit and EinStar 2 scanners. It streamlines the scanning process through a unified, intuitive interface, reduces system load, and enhances overall performance. The result is faster scanning speeds, increased mobility, and reduced operating costs—making it an efficient and powerful tool for both professional and educational environments. |

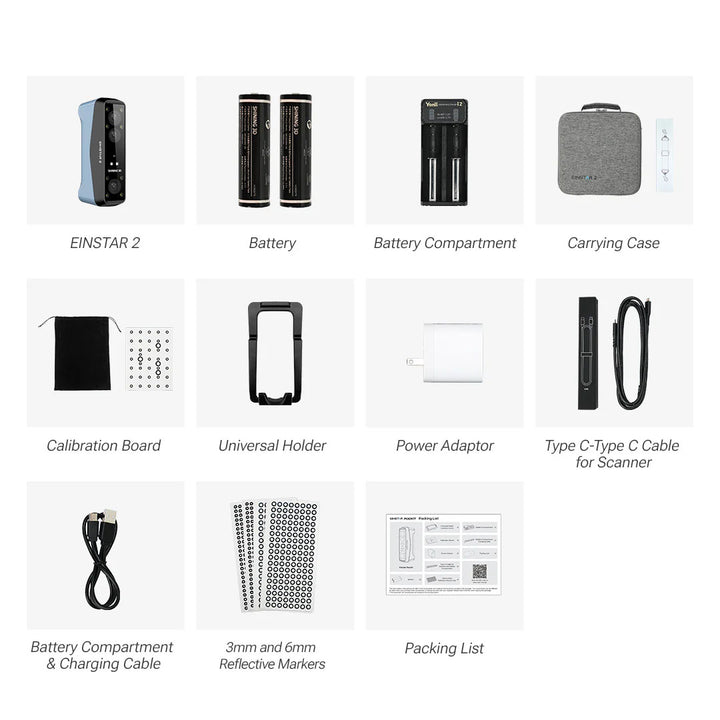

Contents
- 1x EinStar 2 3D Scanner
- 2x Batteries
- 1x Battery Compartment
- 1x Carying Case
- 1x Calibration Board
- 1x Universal Holder
- 1x Power Adapter
- 1x USB Type-C Cable
- 1x Battery Compartment & Charging Cable
- 3mm & 6mm Reflective Markers
- Weight with Battery: 420g
- Weight without Battery: 348g
- Dimensions: 130 x 37 x 61 mm
- Operation Conditions: -10°C ~ 40°C
- Colour Camera Resolution: 3D - 2x 2MP | Texture - 2.3MP
- Output Formats: STL | OBJ | PLY | 3MF | ASC
- Laser Class: Class 2
- Certifications: CE | FCC | ROHS | WEEE | FDA | SRCC | IP50
- Interface: USB Type-C
- Power Source: 1x 5500mA Battery, Supports 60W-PD3.0 Charger
Laser HD Mode
- Light Source: 17 Blue Laser Parallel Lines
- Resolution: 0.05 ~ 10 mm
- Scanning Speed: 2,500,000 points/s
- Working Distance: 100 ~ 600 mm
- Max FOV: 490 x 580 mm
- Alignment Modes: Global Markers | Markers
- Minimum Scan Volume: 10 x 10 x 10 mm
- Outdoor Scanning Environment: Below 110,000 Lux
IR Rapid Mode
- Light Source: IR VCSEL
- Resolution: 0.2 ~ 10 mm
- Scanning Speed: 1,440,000 points/s
- Working Distance: 160 ~ 1400 mm
- Max FOV: 1170 x 1385 mm
- Alignment Modes: Global Markers | Markers | Features | Texture | Hybrid
- Minimum Scan Volume: 50 x 50 x 50 mm
- Outdoor Scanning Environment: Below 70,000 Lux
Recommended PC Specifications
- CPU: 13th Gen Intel®Core™ i7-13700H or above
- GPU: NVIDIA GeForce RTX 3060 Laptop or above
- VRAM: 6GB or above
- RAM: 64 GB or above, DDR5 dual-channel | (Minimum - 32 GB, DDR5 dual-channel)
- Interace: USB 3.0
- Operating System: Windows 11 Professional 22H2 (64-bit)
How does it compare to original EinStar?
The EinStar 2 is a major step up from the original. It introduces a new laser mode for capturing finer details on small objects and can handle reflective surfaces without spray. The tracking in IR mode is even better, and the true wireless design offers greater flexibility. Furthermore, the new software delivers dramatically faster processing speeds and many other refined features to explore.
What does true wireless mean?
EinStar 2 has a built-in Wi-Fi module for wireless connection which means there is no additional accessories required, saving setup time.The whole scanning process is wireless. A USB Type-C cable connection is also available for stable operation in case of poor Wi-Fi connection or interference.
Can EinStar 2 work effectively outdoors or under bright lighting?
Yes, EinStar 2 is designed for outdoor scanning. The Laser HD mode works under bright light up to 110,000 Lux, and the IR Rapid mode supports up to 70,000 Lux, making it reliable for scanning large objects in daylight or under vehicle lights.
What is the advantage of the 17 parallel laser lines compared to other laser patterns?
Optimal balance between speed and detail. Compared to a 7-line pattern, it captures sufficient detail quality while expanding the effective scanning range to cover medium-sized objects, completing such scans much faster. This design positions itself as a cost-effective solution between parallel-line and crossed-line systems. Ultimately, it grants the EinStar 2 a versatile scanning capability comparable to that of scanners equipped with multiple dedicated laser sources.
What is the object type and size EinStar 2 can scan?
From tiny details (5mm) to large scenes (10m), EinStar 2 can handle it. It switches between two modes: the laser mode for small to medium objects and the infrared mode for large object and expansive areas. This flexibility allows it to tackle most materials like black or reflective surfaces.
How long is the battery life?
EinStar 2 features a chargeable battery with up to 3 hours of runtime.There are two batteries and one charger, which means you can use one battery and charge another at the same time..
