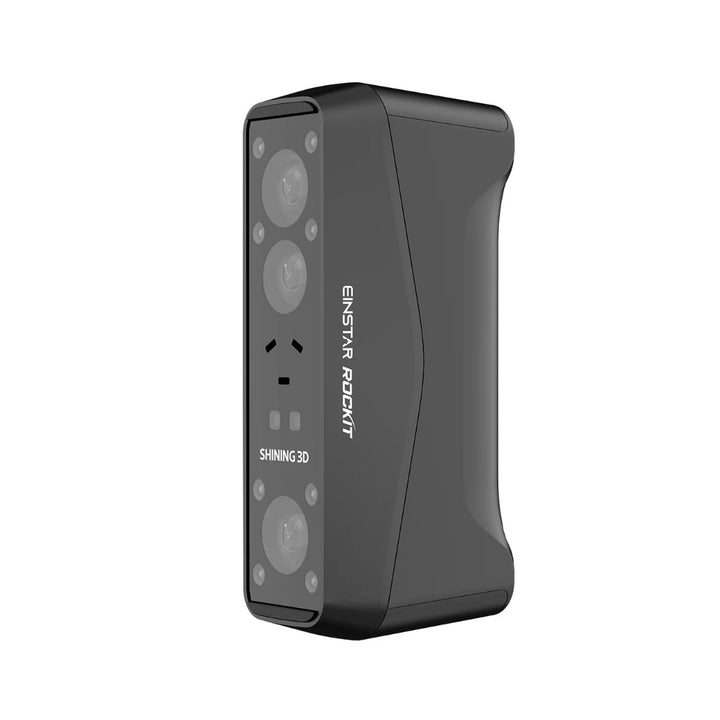

EinStar Rockit 3D Scanner

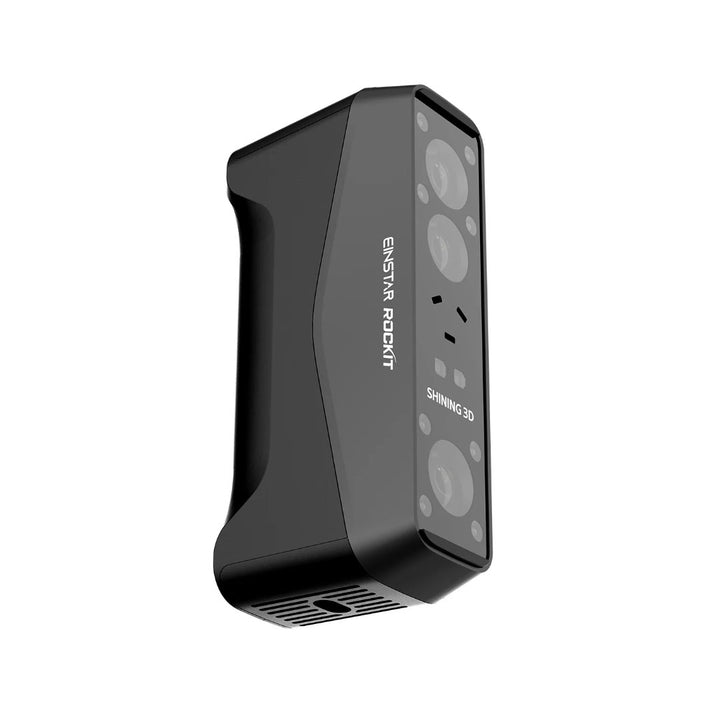

EinStar Rockit 3D Scanner Angled

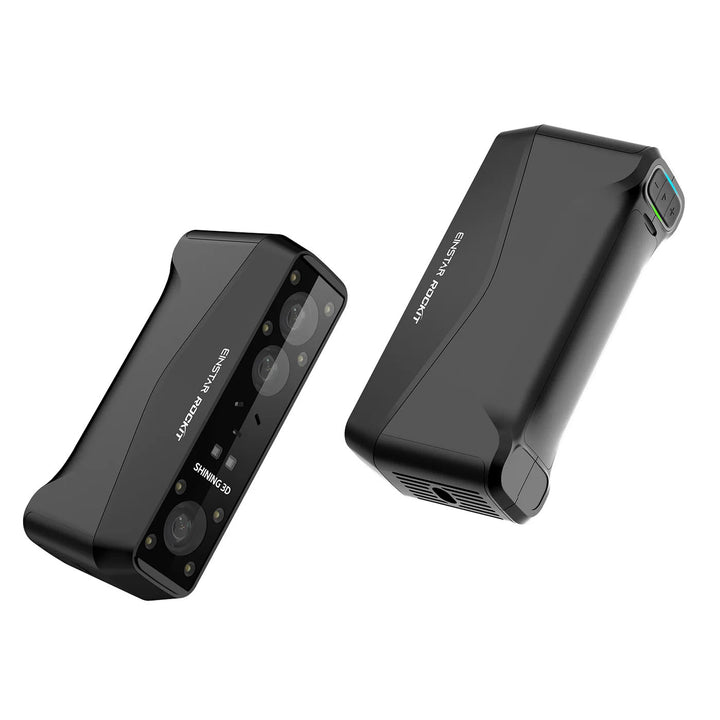

EinStar Rockit 3D Scanner Front and Back
EinStar Rockit 3D Scanner Components

EinStar Rockit 3D Scanner

$3,173.50 inc GST
  • Marker-Free Laser ScanningL
  • Blue laser and Infrared VCSEL
  • Wireless Scanning
  • High-Speed Scanning of up to 90 fps
  • EXStar Hub
Brand: EinStar
SKU: 56257718
Availability: In Stock Backorder Out of stock
Add to Wishlist
Shipping & DeliveryAsk a Question
Description

The EinStar Rockit 3D Scanner is a compact, wireless handheld device that brings professional‑level scanning to your fingertips. Featuring a hybrid light source with blue laser lines and IR VCSEL technology, built‑in WiFi for real‑time PC connection, and a swappable battery delivering up to three hours’ runtime, it’s optimised for mobile, marker‑free scanning of everything from automotive components to outdoor sculptures.



Benefits

  • Marker-Free Scanning
  • Built-in Wi-Fi
  • Hybrid Light Source
  • Fast & Stable Tracking
  • Pocket Size
  • 5MP Colour Camera

Applications

  • 3D Printing & Personal Manufacturing
  • Automotive
  • Research & Education


Features

Marker Free Scanning

  • 17 Parallel Laser Lines: Featuring a 17-line blue laser array, enabling high-resolution scanning of small objects and efficient capture of medium-sized ones. It excels on reflective and metallic surfaces and operates at speeds of up to 90 frames per second. The scanner also offers enhanced capability for deep-hole scanning, ensuring accurate results even in complex or recessed areas.
  • IR VCSEL: With higher-resolution cameras and improved performance on dark surfaces and in outdoor environments, the EINSTAR 2 captures large objects in impressive detail with a single, efficient scan.
EinStar Rockit Scanning a Car without Markers
Wireless Scanning

Wireless

  • Built-in Wi-Fi module — no need for additional hubs or adapters
  • Truly wireless operation, free from tangled cables
  • Stable, real-time synchronisation with PC
  • Integrated, swappable battery offering up to 3 hours of runtime each
  • Optional cable connection available for uninterrupted use in environments with poor Wi-Fi or interference

Blue Laser

Featuring 38 laser lines (19 crossed pairs) for rapid, large-area data capture and an additional 7 parallel laser lines dedicated to scanning fine features, this system ensures both speed and precision.
Blue Laser Lines
Full Body 3D Scanning

IR VCSEL

  • Scan from head to toe in just 60 seconds
  • Ideal for medium to large objects, even in bright or outdoor settings
  • Hybrid alignment (texture + feature) ensures reliable results across varied scenarios

Pocket Size Design

  • Sleek, durable design with a refined finish — fits comfortably in your hand or pocket
  • Captures at up to 90 fps with marker alignment for smooth, real-time scanning
  • Produces clean, high-quality point clouds for consistent and reliable results you can trust
Small 3D Scanner Scanning Car Interior
Full Colour Scan of Sculpture

Capture True Colours

  • Integrated 5MP colour camera for vibrant texture capture
  • Enhances 3D models with realistic surface detail and depth
  • Ideal for augmented reality, virtual reality, digital artistry, and bespoke design applications

Outdoor Scanning

  • Delivers reliable performance in daylight and challenging lighting conditions
  • Fully wireless and cable-free design for maximum mobility and ease of use
  • Ideal for scanning outdoor objects such as statues, sculptures, and more
  • Laser HD mode operates effectively in lighting up to 110,000 Lux, while IR Rapid mode supports up to 70,000 Lux, ensuring dependable scanning even in bright environments
Scanning Car Outside
EXStar Hub Software on a Laptop

EXStar Hub Software

EXStar Hub is a user-friendly software platform designed for use with the EinStar Rockit and EinStar 2 scanners. It streamlines the scanning process through a unified, intuitive interface, reduces system load, and enhances overall performance. The result is faster scanning speeds, increased mobility, and reduced operating costs—making it an efficient and powerful tool for both professional and educational environments.

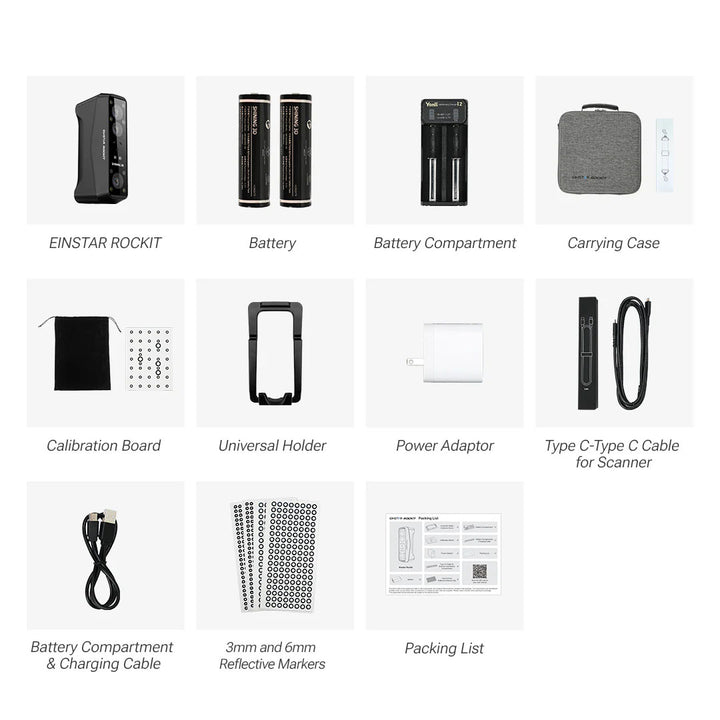

Contents

  • 1x EinStar Rockit 3D Scanner
  • 2x Batteries
  • 1x Battery Compartment
  • 1x Carying Case
  • 1x Calibration Board
  • 1x Universal Holder
  • 1x Power Adapter
  • 1x USB Type-C Cable
  • 1x Battery Compartment & Charging Cable
  • 3mm & 6mm Reflective Markers
Specifications
  • Weight with Battery: 425g
  • Weight without Battery: 353g
  • Dimensions: 130 x 37 x 61 mm
  • Operation Conditions: -10°C ~ 40°C
  • Colour Camera Resolution: 3D - 2x 2MP | Texture - 5MP
  • Output Formats: STL | OBJ | PLY | 3MF | ASC
  • Laser Class: Class 2
  • Certifications: CE | FCC | ROHS | WEEE | FDA | SRCC | IP50
  • Interface: USB Type-C
  • Power Source: 1x 5500mA Battery, Supports 60W-PD3.0 Charger

Laser HD Mode

  • Light Source: 19 + 19 Cossed Laser Lines | 7 Blue Laser Parallel Lines
  • Resolution: 0.05 ~ 10 mm
  • Scanning Speed: 2,800,000 points/s
  • Working Distance: 100 ~ 600 mm | 100 ~ 400 mm
  • Max FOV: 545 x 620 mm | 355 x 425 mm
  • Alignment Modes: Global Markers | Markers | Feature | Hybrid
  • Minimum Scan Volume: 5 x 5 x 5 mm
  • Outdoor Scanning Environment: Below 110,000 Lux

IR Rapid Mode

  • Light Source: IR VCSEL
  • Resolution: 0.2 ~ 10 mm
  • Scanning Speed: 1,440,000 points/s
  • Working Distance: 160 ~ 1400 mm
  • Max FOV: 1170 x 1385 mm
  • Alignment Modes: Global Markers | Markers | Features | Texture | Hybrid
  • Minimum Scan Volume: 50 x 50 x 50 mm
  • Outdoor Scanning Environment: Below 70,000 Lux

Recommended PC Specifications

  • CPU: 13th Gen Intel®Core™ i7-13700H or above
  • GPU: NVIDIA GeForce RTX 3060 Laptop or above
  • VRAM: 6GB or above
  • RAM: 64 GB or above, DDR5 dual-channel | (Minimum - 32 GB, DDR5 dual-channel)
  • Interace: USB 3.0
  • Operating System: Windows 11 Professional 22H2 (64-bit)
FREE Resources
FAQs

Who is EinStar Rockit for, and what are its typical use cases?

EinStar Rockit is a portable and high-efficiency 3D scanner ideal for product designers, Car engineers, 3D artists and makers. Its applications include automotive part scanning, digital art creation, AR/VR content production, and scanning outdoor objects like statues and sculptures.

Does Rockit support wireless scanning?

Yes, Rockit has a built-in Wi-Fi module for wireless connection to a PC and doesn’t require any additional accessories, providing a more convenient setup. A USB Type-C cable connection is also available for stable operation in case of poor Wi-Fi and interference.

Can Rockit work effectively outdoors or under bright lighting?

Yes, Rockit is designed for outdoor scanning. The Laser HD mode works under bright light up to 110,000 Lux, and the IR Rapid mode supports up to 70,000 Lux, making it reliable for scanning large objects in daylight or under vehicle lights.

Are markers required for scanning?

Rockit supports Marker-free laser scanning in both crossed and parallel lines, aligning data via feature recognition to simplify workflow and improve efficiency. It also supports marker-based alignment for objects with few surface features in laser mode. IR mode supports Hybrid alignment, including feature, texture and marker tracking for different objects.

What is the battery life?

It features a chargeable battery with up to 3 hours of runtime. There are two batteries and one charger. Which means you can use one battery and charge another at the same time.

Is the texture resolution real 5MP?

Yes, absolutely. EinStar Rockit features a dedicated 5MP colour camera for texture capture. More importantly, our advanced texture mapping algorithm intelligently processes the data with minimal resolution loss, ensuring that the final 3D model achieves a genuine and high-fidelity 5MP texture resolution. This means you get photorealistic textures with sharp details and accurate colours, significantly enhancing the realism of your digital models.
