Elecfreaks Ring:bit Car Accessories Kit
Line Following Module
Line Following Assembly
Light Bar Module
Sonar Bit Module
Sonar Bit Assembly

Elecfreaks Ring:bit Car Accessories Kit

$29.51 inc GST $27.50 inc GST

A kit of dedicated modules designed for the Elecfreaks Ring:bit Car. Line Following Module Equipped with double infrared probes, it can detect the distance between 2~12mm accurately that can achieve the...

Brand: Elecfreaks
SKU: 51247430
Availability: In Stock Backorder Out of stock
Add to Wishlist

Required products - sold separately

Description

A kit of dedicated modules designed for the Elecfreaks Ring:bit Car.

Line Following Module

Equipped with double infrared probes, it can detect the distance between 2~12mm accurately that can achieve the function of line following around the circles, the detection of the black lines and the detection of the edge.

Light Bar Module

It can brings you mutiple color with simple assemblling methods.It comes with 8 Rainbow full color LEDs. You can update it to a car with auto-headlights and rainbow lights.

Sonar:bit Module

This module is installed in the back to make sure it goes freely avoiding any obstacle.It is a 3-wire ultrasonic module with the working voltage between 3-5V. It is available to be used to 3.3V or 5V micro-controller system. With only one 3-wire(GVS) cable, it can work properly. Compared to the normal 4-wire ultrasonic module, it has saved one IO port. The measurement range of sonar:bit is 4cm-400cm. It can output stable and accurate measurement data with ±1cm tolerance only.

Applications

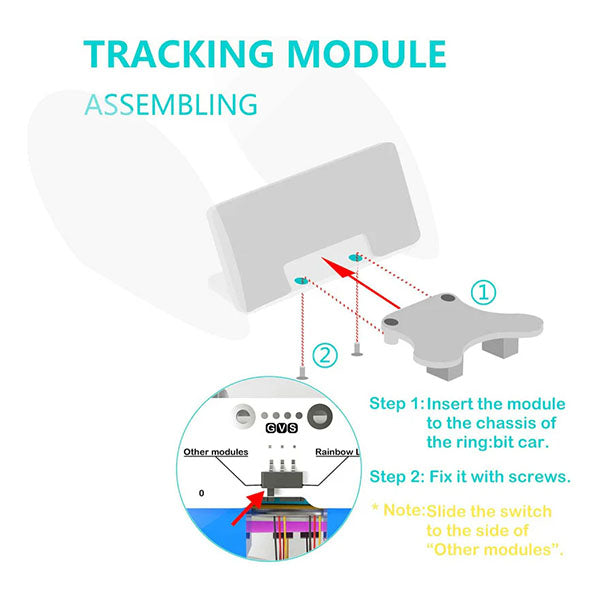

Tracking Module

Tracking Module Example

The tracking module is installed in the front to make sure the ring:bit car goes along with the black line.

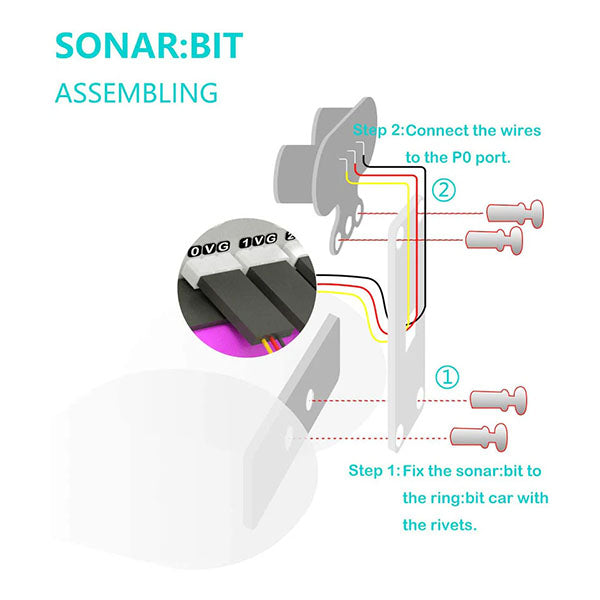

Sonar:bit

Sonar Bit Example

The sonar:bit is installed in the back to make sure it goes freely avoiding any obstacle.

Light Bar Module

Light Bar Example

The light-bar module is installed in the front to make the car more bright and colourful.
