FLUX Beambox 2 CO2 Laser Cutter & Engraver
- High Power 55W CO2 Laser
- 900mm/s Engraving Speed
- Built-in Auto Focus
- Large Working Area of 600 x 375 mm
Introducing the all-new FLUX Beambox 2, a next-generation laser cutter and engraver designed to turn your creative visions into reality. Built for both precision and power, the Beambox II is equipped with a robust 55W CO₂ laser, making it easier than ever to cut, engrave, and craft with stunning accuracy. Whether you're an educator, professional designer, small business owner, or passionate maker, the Beambox 2 offers the perfect blend of performance and ease of use to elevate every project.
Three Simple Steps!
1. Place Your Material
2. Tap to Auto Focus
3. Import Your Design & Start
Features
55W Laser Upgrade!The Beambox 2 now features a powerful 55W CO2 laser, delivering outstanding cutting performance. Effortlessly slice through 20mm acrylic or 18mm Japanese cypress with precision—whether you're crafting intricate patterns or bold designs. |
 |
900mm/s Ultra-Fast EngravingWith blazing engraving speeds of up to 900mm/s, the Beambox II propels your creativity to new heights. This groundbreaking upgrade triples your efficiency, making it faster and easier to produce intricate designs and tackle large-scale projects. |
|
Larger Working AreaThe Beambox 2 boasts an expanded working area of 600mm x 375mm and a depth of 125mm. This enhanced capacity allows you to work with larger materials or process multiple pieces simultaneously—delivering greater flexibility, speed, and efficiency to every project. |
 |
 |
Deeper Work DepthWith an upgraded depth from 80mm to 125mm, Beambox 2 offers enhanced flexibility and expanded material compatibility. For even greater versatility, simply remove the honeycomb tray to accommodate thicker materials—opening the door to a wider world of creative potential. |
Extension Pocket Add-on (Class 4)The Pocket Add-on enhances your workflow by accommodating thicker materials and supporting the Chuck Rotary for accurate engraving on cylindrical and irregularly shaped objects. With an expansion tray offering a working area of 385mm x 210mm and a depth of 215mm, it significantly broadens your creative workspace and opens the door to even greater design possibilities. |
 |
 |
Material Passthrough Add-On (Class 4)Thanks to the Passthrough feature, the Beambox II includes open ends at both the front and back, making it easy to work with longer materials. Say goodbye to length limitations—your creativity can now flow freely, without boundaries. |
Automatic Material Feeder Add-On (Class 4)Streamline your workflow with the Auto Feeder, delivering smooth material handling, accurate alignment, and uninterrupted production for peak efficiency. |
|
Curve EngravingThe curve engraving feature is engineered for precision on curved surfaces. Utilizing red light for accurate height detection, the Z-axis automatically adjusts in real time to maintain consistent engraving depth. Achieve flawless detail on every curve—expanding your creative potential beyond flat surfaces. |
|
Beam Studio SoftwareBeam Studio is the intuitive software designed for FLUX Laser cutters like Beamo, Beambox, Beambox Pro and HEXA. It’s compatible with Windows, macOS, Linux and also has a mobile app. Its clean user interface allows you to easily access all the features of your laser cutter. Beam Studio connects to your network using Wi-Fi or Ethernet. It can also connect to your personal hotspot. Multi-computer control makes it perfect for makerspaces and schools. The software supports JPG/PNG/SVG/DXF files, and will save any layer settings you’ve used. |
 |
 |
LightBurn Software CompatibleCreate from scratch or import existing designs with ease using the industry’s most powerful laser software. Beambox II offers full compatibility with LightBurn, giving you the freedom to work with a professional-grade platform you already know and trust. |
Smart Lid SensorsFeatures a durable full-metal enclosure and an automatic safety mechanism that halts operation immediately when the lid is opened. |
 |
 |
Emergency Stop ButtonAn emergency stop button located on the side of the machine allows for immediate shutdown in critical situations, ensuring safety at all times. |
Austomatic Flame SensorEquipped with seven flame sensors strategically placed throughout the working area. If a flame is detected during operation, an alarm is triggered instantly, providing an added layer of safety. |
 |
Contents
- 1x FLUX Beambox 2 Laser Cutter
- 1x Product Test Report
- 1x Camera Calibration Paper
- 1x Quick Start Guide
- Double-sided Tape
- 1x Lubricating Oil
- 1x 2.5mm Hex Key Wrench
- 1x Torx Screwdriver
- 1x 3mm Hex Key Wrench
- 1x Double Head Wrench
- 1x Funnel
- USB Cable
- 1x Wi-Fi Dongle & 90-degree USB Adapter
- Air Pump Filter
- 1x Power Cord
- 1x Vent Hose
- 1x Wood Piece
- Laser Type: CO2
- Laser Power: 55W
- Weight: 48.5 kg
- Dimensions: 1005 x 692 x 334 mm
- Max Engraving Speed: 900 mm/s
- Max Acceleration: 8000 mm/s2
- Resolution: 1000 DPI
- Touch Screen: 5 inch Touch Screen
- Focusing: Auto Focus
- Positioning: Camera Preview | Red Light Preview
- Connectivity: Wi-Fi | USB | Ethernet (by USB Dongle)
- Operating Systems: Windows | MacOS | Linux | ChromeOS | Web (iOS, iPad OS, Android)
- Software: Beam Studio | LightBurn
- Material Size: 600 x 435 mm
- Working Area: 600 x 375 mm
- Working Depth: 125 mm (without honeycomb) | 60 mm (with honeycomb) | 215 mm with Extension Pocket Add-On)
- Extension Pocket Working Area: 285 x 210 mm
Passthrough
- Depth: 14 mm
- Width: 350 mm

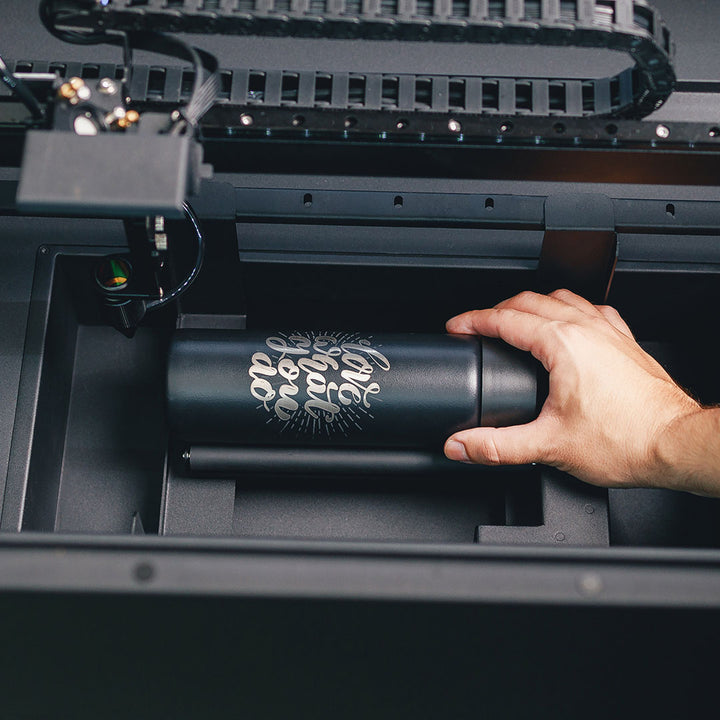

Rotary
- Engravable Diameter: 8-180 mm
- Engravable Length: 570 mm
Chuck
- Cylinder Diameter: 1-145 mm
- Ring Diameter: 11-145 mm
- Sphere Diameter: 25-130 mm
- Engravable Length: 500 mm
What are the differences between Beambox 2, Beambox, and Beambox Pro?
Each machine was released at different times and features different laser power levels. Beambox has a 40W laser, capable of cutting up to 0.47” (12mm) thick materials, depending on the material type. Beambox Pro features a 50W laser, allowing for a maximum cutting thickness of 0.55” (14mm). Beambox 2 is the latest model in the Beambox series, equipped with a 55W laser that can cut up to 0.79” (20mm) thick materials. It also comes with further hardware and software upgrades. We recommend choosing the model that best suits your needs.
What materials can Beambox 2 cut and engrave
Beambox 2 precisely cuts wood, acrylic, leather, and cardboard, with a maximum cutting thickness of 0.79 inch (20 mm) (depending on the material). It can engrave a wide range of materials, including stone, anodized metal, glass, and rubber.
Can Beambox II cut deeper than the material specifications?
By reducing the speed in the software or performing multiple passes, you can achieve deeper cuts.
Does the camera preview area of Beambox 2 fully cover the working area?
Yes, the camera preview area perfectly matches the working area.
How do I align materials on Beambox 2?
You can use the camera preview function in the top left corner of Beam Studio software or by using the red light preview function in the top right corner of Beam Studio software.
How do I focus the material on Beambox 2?
Beambox 2 has built-in auto focus. Simply press and hold the AF button on the bottom left of the touchscreen for 2–3 seconds to complete the focusing process.
Laser sounds dangerous. What safety precautions should I take?
Beambox 2 is CE, FCC, and FDA certified, meeting global safety and quality standards. It also complies with IEC60825-1 standards and is SGS certified, ensuring the highest level of safety for users. The fully enclosed design includes a lid-open safety stop mechanism and an emergency stop button on the right side of the machine. Pressing the emergency stop button will immediately halt the machine’s operation.
Can Beambox 2 cut metal?
Beambox 2 is a CO2 laser cutter and can only engrave on anodized or painted metal. However, It can cut wood, acrylic, leather, and cardboard perfectly.
Does Beambox 2 have built-in air assist and exhaust functions?
Yes, Beambox 2 has a built-in air pump and a powerful exhaust fan. The air pump prevents materials from burning or leaving scorch marks, while the exhaust fan removes cutting fumes from the machine.
Does Beambox 2 comes with a honeycomb cutting platform?
Yes, Beambox 2 includes a honeycomb platform. With the honeycomb platform installed, the maximum material thickness is 2.36 inches (6 cm). If you remove the honeycomb platform, the maximum material thickness is 4.92 inches (12.5 cm). If you remove the honeycomb platform and install the Extension Pocket Add-on, the maximum material thickness is 8.46 inches (21.5 cm).
What is the recommended installation environment?
We recommend installing Beambox 2 in a well-ventilated area with a window. Laser cutting generates combustion fumes and dust, so use the included vent hose to direct fumes outside. Some fumes may escape when opening the lid, so ensure proper indoor ventilation or use an Air Filter.
What maintenance does the machine require?
All CO2 laser machines require regular maintenance. Clean the mirrors and focus lens regularly based on usage and material type—typically about once a week. Apply lubricant to the linear rails periodically for smooth operation. If the water level in the cooling tank drops after long-term use, refill it with distilled water.
