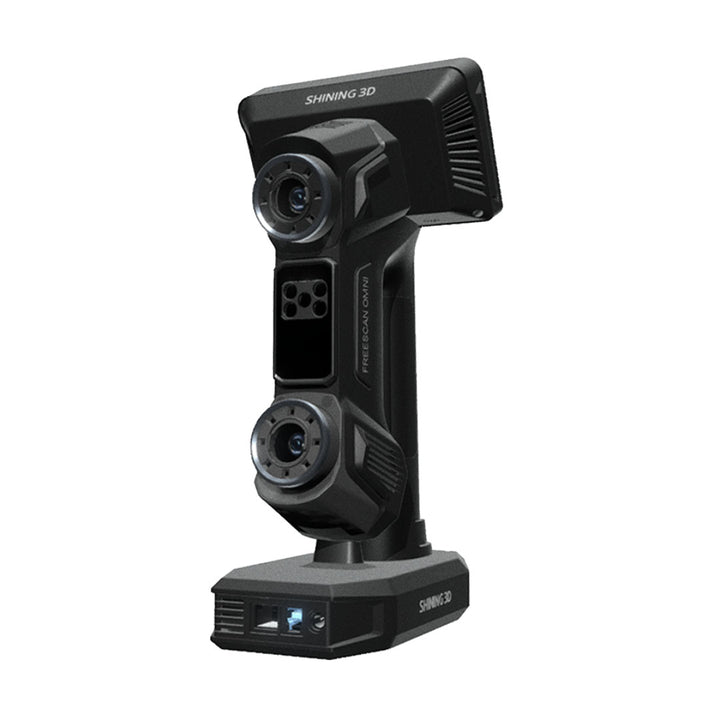

FreeScan Omni 3D Scanner
- On-Scanner Scan-To-Inspect
- Standalone & Wireless Design
- PTB-Certified Inspection Module
- Multi-Mode & High-Performance
The FreeScan Omni is a metrology-grade, handheld 3D scanner built for industrial‑scale inspection and quality control. With a fully wireless, standalone design that puts scanning, meshing, inspection and reporting all on the device itself, it empowers users to perform accurate checks wherever they are—from the production floor to the field.
Benefits
- Wireless & Standalone
- On-Scanner Scan-To-Inspect
- Certified Inspection Module
- Metrology-Grade Accuracy
- Integrated Video Photogrammetry
- Blue Laser & IR VCSEL
Applications
- Automotive
- Construction Machinery
- Energy / Heavy Industry
- General Manufacturing Equipment
Features
Metrology-Grade On-Scanner InspectionEvery stage of the workflow—from scanning and meshing to inspection and reporting—is completed seamlessly on the scanner itself. With built-in templates and an intuitive user interface, frontline staff can simply scan a part and instantly generate consistent, reliable inspection reports. This streamlines quality control, making it more efficient, accessible, and scalable across teams.
|
 |
 |
Engineered for On-Site Quality Control
|
Video Photogrammetry (VPG)The FreeScan Omni incorporates SHINING 3D’s patented Video Photogrammetry (VPG) technology, eliminating the need for coded markers during scanning. By integrating photogrammetry with a calibration rod, it enables real-time marker verification via video capture. This innovative approach ensures consistent volumetric accuracy while significantly reducing setup time, making it ideal for efficient and reliable scanning of large-scale objects. |
 |
 |
Power Without LimitsThe FreeScan Omni offers a completely wireless scanning experience, removing the need for power cords or data cables. All scanning, data processing, and inspection functions are performed directly on the device itself, ensuring maximum efficiency and portability. Its swappable battery packs allow for uninterrupted operation, enabling users to switch batteries on the fly without any downtime. |
Power & Wi-Fi Set in One Dock
|
 |
 |
Multiple Scanning Modes for Industrial Usage
|
- Accuracy: 0.02 mm
- Volumetric Accuracy with VPG: 0.02 + 0.015 mm/m
- Scan Speed: Up to 7,619,000 points/s
- Hardware: Built-in computing (32G) | FPGA | 1TB SSD
- Max FOV Laser Mode: 580 x 650 mm
- Max FOV IR Mode: 1205 x 1104 mm
- VPG: Included (no coded markers required)
- Inspection Module: Included (integrated on-device inspection)
- High-Speed Scan: Included, 93 Laser Lines | VCSEL
- Detailed Scan: Included, 25 Parallel Laser Lines
- Deep Pocket Scan: Included, 1 Laser Line
- Hole Scanning: Intelligent hole boundary detection
- Smart Dock Connection: Wireless | Wired Mode (Fiber Optic)
- Output Formats: STL | ASC | 3MF | P3
- Certifications: CE | FCC | ROHS | WEEE | KC | FDA | UKCA | IP50 | TELEC | TiSAX
- Acceptance Test: VDI/VDE 2634 Part3 (certified in ISO 17025 certificated accuracy lab)
How long is the battery life of FreeScan Omni?
FreeScan Omni requires 4 batteries to operate. Each package includes 8 rechargeable batteries, allowing for continuous scanning of up to 1 hour per set. Thanks to its hot-swappable battery design, you can replace batteries without shutting down the device, enabling uninterrupted scanning.
Is the SHINING3D Inspect module permanently maintained and updated after purchasing the Omni?
Yes, SHINING 3D will continuously maintain and update the SHINING 3D Inspect software and bring new features and improvements, ensuring the software remains powerful and up to date. All FreeScan Omni customers will receive these updates.
Besides having SHINING3D Inspect in Omni, will get access to desktop version as well?
Yes, FreeScan Omni comes with the full version of SHINING 3D Inspect included in the package. It’s available not only on the scanner itself but also as a desktop application, allowing you to create inspection templates or use it as a standalone inspection tool.
How is high accuracy maintained when scanning large objects?
FreeScan Omni comes with a validated scale bar in the package, that being integrated with SHINING 3D video photogrammetry technology to verify markers in real time, which is also reusable for multiple times to improve overall accuracy for large object scans.
Is there another way to scan and process data besides directly on Omni itself?
FreeScan Omni is a standalone device, but it can also work with our desktop FreeScan Omni software, to provide more powerful scanning experience and plenty of features to process your data. With FreeScan Omni, you can stream scanning on your desktop, manage multiple projects, fuse resolutions, and take advantage of various data editing tools, all with customizable settings to suit your needs.
Does SHINING3D Inspect support cloud license?
The license is tied to a specific laptop. If you want to use it on a different device, you’ll need assistance from SHINING 3D support to transfer the license.
