Kitronik :MOVE Motor Klaw Kit

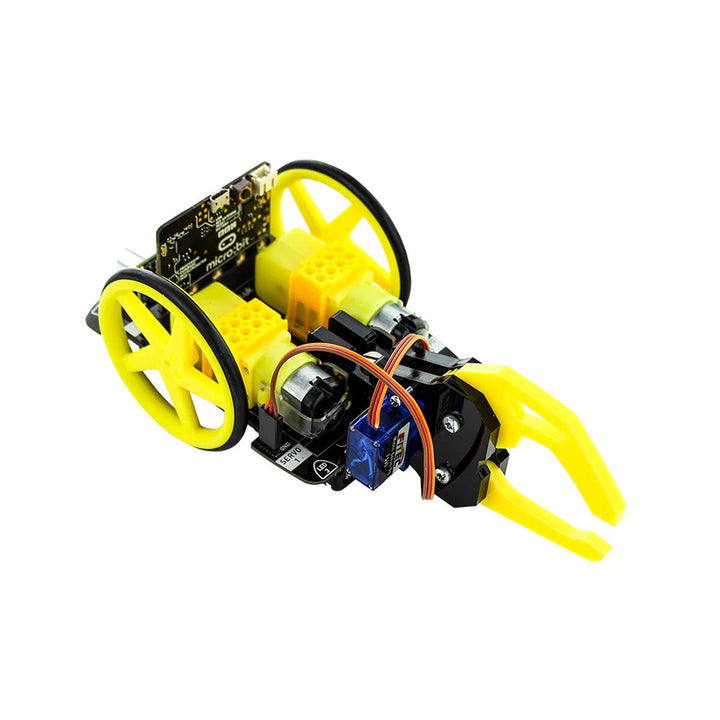

The :MOVE Motor Klaw is a fun and easy-to-install upgrade for the Kitronik :MOVE Motor buggy for the BBC micro:bit. Designed with flexibility in mind, it can be mounted either vertically or horizontally using just a single bolt. The kit also includes two types of Klaw attachments, tailored for each mounting option.

The Klaw is operated by a low-voltage servo (included), which controls the opening and closing mechanism. Power and control signals are supplied directly from the :MOVE Motor via the onboard pin headers—just plug the servo lead into the headers, and you're ready to go.

You can program the :MOVE Motor Klaw using either MakeCode or MicroPython. Step-by-step online guides are available to help you get started, along with full build instructions—links can be found in the FREE Resources tab.

Features

• Easily add a gripping Klaw to :MOVE Motor
• Servo powered opening and closing with the servo included as a part of the kit
• Fit to :MOVE motor either horizontally or vertically
• Easy to assemble
• Code it with MakeCode or with MicroPython

Contents

• 1x Feetech Micro Servo - FS90 180 Degree Rotation
• 2x M3 x 16mm Screws
• 1x M3 Steel Washer
• 2x M2 x 12mm Scews
• 1x M4 x 25mm Scews
• 6x Laser Cut Perspex Parts
• Printed Assembly Instructions
