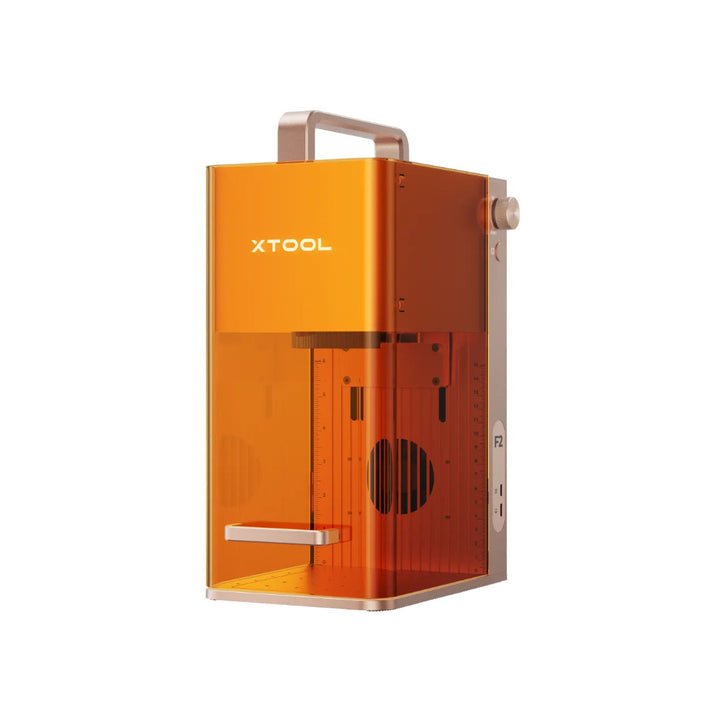

xTool F2 - IR & Diode Laser Engraver
- 15W Diode & 5W IR Dual Power
- 50MP Camera for Precise Alignment
- Marking up to 6,000 mm/s
- Pre-assembled
Introducing the xTool F2 5W IR & 15W Diode Dual Laser Engraver — the ultimate portable powerhouse designed to take your creative and business-level engraving to the next level. With a dual-laser configuration featuring a 15W diode laser plus a 5W infrared (IR) laser, this machine effortlessly handles over 300 materials — from wood, leather and acrylic to coated or bare metals like stainless steel, aluminum and precious metals.
Features
Dual-Power VersatilityOne machine, double the laser strength. Master 300+ materials and expand your ability to take on every order that comes your way. |
 |
 |
50MP CameraEquipped with a built-in 50MP camera, the F2 provides a full visual preview of your workspace and achieves precise alignment down to 0.1 mm on even the smallest pieces—minimizing mistakes and material waste so your design lands perfectly centered the first time. |
Unlock More PossibilitiesWith its boosted laser power, the F2 delivers efficient 3D embossing on stone and wood, cuts through thicker materials with ease, produces more uniform colour engraving, and greatly simplifies achieving deep black marks on metal—outperforming older 2W IR models by a wide margin. |
 |
 |
Rotary CompatiblePerfect for everyday cylindrical and spherical items — including tumblers, mugs, Christmas ornaments, rings and more. It also lets you unlock seamless full-wrap engraving for complete design coverage. |
Slide ExtensionExpand your working area by 4x with a fast, effortless setup. The extended space gives you plenty of room for larger projects, supports seamless batch production, and significantly boosts your overall efficiency. |
 |
 |
High-Resolution EngravingAchieve Exceptional Detail with Ultra-Fine Engraving Lines. Even up close, every mark remains crisp and consistent — delivering precise, uniform lines with beautifully clean edges. |
Clear & Vivid Photo EngravingCompared to other machines, the F2 produces noticeably cleaner micro-contrast — delivering sharper fur detail, brighter highlights, and deeper, more vibrant shadows. |
 |
 |
Safety FeaturesF2 includes a range of safety features, including a laser light–proof enclosure, an emergency stop button for instant shutdown, overheat protection to prevent damage during long sessions, and a smoke-free built-in fan that automatically vents fumes while the machine is in use. |
Contents
- 1x xTool F2
- 1x Exhause Pipe
- 1x Power Adapter
- 1x Power Cable
- 1x USB Cable
- Triangular Prism Working Panel
- L-Shaped Positioning Piece
- Lint-free Cloth
- Key
- Grease
- Material Pack
- Baseplate
- User Manual
- Safety Certification: Class 4
- Dimensions: 175 x 237 x 334 mm
- Weight: 4.8 kg
- Max Machine Input Power: 24V 6.0A 150W
- Power Adapter Input Voltage: 100 V - 120 V, AC 50/60 Hz
- Laser Type: 15W Diode | 5W 1064nm Infrared
- Processing Mode: Laser Engraving | Laser Cutting
- Supported Cuttable Materials:
- Diode Laser: Paper | Wood | Leather | MDF | Felt | Some Dark Opaque Acrylic
- Supported Engravable Materials:
- Diode Laser: Paper | Wood | Leather | MDF | Coated Metal | Some Dark Opaque Acrylic | Bamboo | Fabric
- Infrared Laser: Stainless Steel | Platinum | Brass | Silver | Plastic | Gold
- Working Area: 115 x 115 mm
- Max Working Speed: 6000mm/s
- Max Laser Cutting Capacity: 15 mm Basswood in Multiple Passes | 12 mm Acrylic in Multiple Passes
- Max Processing Height: 120 mm
- Max Rotary Engraving Diameter: 120 mm
- Pre-assembled: Yes
- Built-in Camera: 50MP Camera
- Positioning Method: Camera Positioning | Framing Positioning
- Focus Mode: Autofocus | Manual Focus
- Preview Method: Smart Camera Preview | High-speed Light Live Preview
- Framing Mode: Rectangle Framing | Outline Framing | Polygon Framing
- Laser Spot Size: 0.08 x 0.06 mm (Diode) | 0.03 x 0.03 mm (Infrared)
- Operating System: Windows | MacOS
- Connection Method: USB | Wi-FI | IP
- Supported Files: SVG | DXF | JPG | JPEG | PNG | BMP
- Supported Software: xTool Creatice Space (xTool Studio)
What’s the difference between F2 and F1?
The F2 delivers major upgrades over the F1, including higher laser power (15W blue + 5W IR vs. 10W blue + 2W IR), a new built-in 50MP high-resolution camera with autofocus and precise visual alignment, faster engraving speeds up to 6000 mm/s (vs. 4000 mm/s), and advanced software capabilities such as curved-surface engraving, relief engraving, batch processing, and autofocus—all features not available on the F1.
Is xTool F2 compatible with F1 accessories?
Yes! Compatible with all F1 accessories—except the Rolling Hard Case. Your previous investment won’t go to waste—F2 integrates seamlessly into your existing xTool ecosystem.
What’s the working area and max workpiece height for F2?
- Standard area: 115 x 115 mm, ideal for most small items.
- Extended area (with Slide Extension): 115 x 400 mm, great for batch runs and long pieces.
- Max workpiece height: Up to 120 mm, slightly taller than F1 (about 113 mm).
Which metals can F2 process?
The 5W IR (1064 nm) laser is designed for metal marking/engraving with crisp detail and depth on most metals, including: stainless steel, aluminum, copper, brass, titanium alloys, plated metals, anodised aluminum, gold, silver, and platinum.
What software does F2 use? Does it support LightBurn?
F2 currently works exclusively with xTool Studio (formerly XCS). It does not support LightBurn at this time.
xTool Studio runs on Windows and macOS, and combines design, layout, parameter settings, and machine control in one beginner-friendly app.
