xTool F2 Ultra - MOPA & Diode All-in-one Bundle (Class 4)
The xTool F2 Ultra MOPA & Diode Laser Engraver is a cutting-edge all-in-one solution for businesses and creators, delivering exceptional precision and versatility to tackle intricate engraving projects across a wide...
The xTool F2 Ultra MOPA & Diode Laser Engraver is a cutting-edge all-in-one solution for businesses and creators, delivering exceptional precision and versatility to tackle intricate engraving projects across a wide variety of materials.

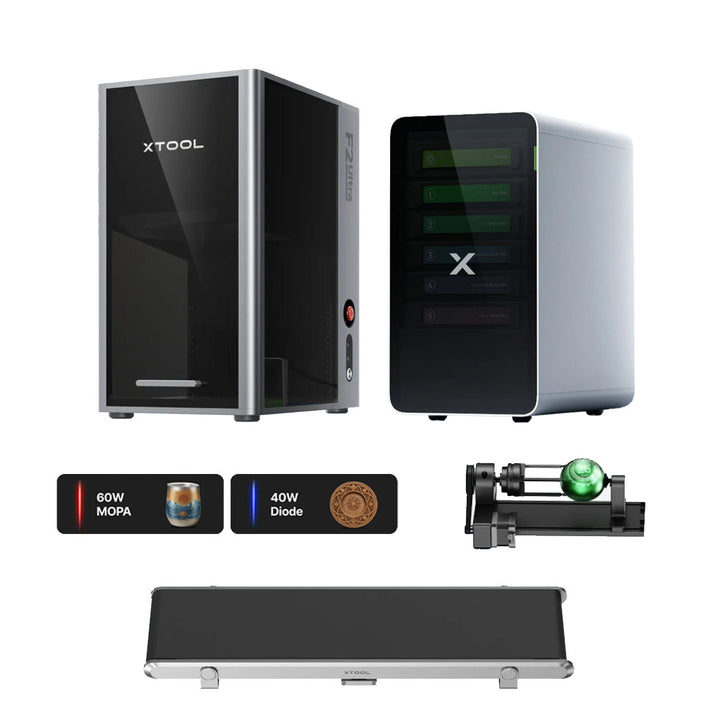

Includes
-
1x xTool F2 Ultra - MOPA & Diode Laser Engraver
-
1x xTool RA2 Pro Rotary
-
1x xTool F2 Ultra - Conveyor Belt -
1x xTool SafetyPro AP2 Air Purifier
- Safety Certification: Class 4
- Dimensions: 294 x 429 x 521 mm
- Weight: 21.6 kg
- Max Machine Input Power: 400W
- Power Adapter Input Voltage: 100 V - 240 V, AC 50/60 Hz
- Laser Type: 40W Diode | 60W MOPA
- Processing Mode: Laser Engraving | Laser Cutting
- Supported Cuttable Materials:
- Diode Laser: Paper | Wood | Leather | MDF | Felt | Some Dark Opaque Acrylic
- MOPA Laser: Brass | Stainless Steel | Aluminium
- Supported Engravable Materials:
- Diode Laser: Paper | Wood | Leather | MDF | Stainless Steel | Some Dark Opaque Acrylic | Bamboo | Fabric | Dark Glass | Ceramic | Jade | Marble | Shale | Cement | Brick | Plated Metal | Painted Metal
- MOPA Laser: Stainless Steel | Aluminium | Brass | Silver | Plastic | Titanium | Gold
- Working Area: 220 x 250 mm
- Max Working Speed: 15,000mm/s
- Max Laser Cutting Capacity: 23 mm Basswood in Multiple Passes | 20 mm Acrylic in Multiple Passes
- Max Processing Height: 150 mm
- Max Rotary Engraving Diameter: 150 mm
- Pre-assembled: Yes
- AImake Compatibility: Yes
- Built-in Camera: 48MP Dual Cameras
- Positioning Method: Camera Positioning
- Focus Mode: Autofocus
- Ranging System: N/A
- Preview Method: Smart Camera Preview
- Laser Spot Size: 0.09 x 0.1 mm (Diode) | 0.03 x 0.03 mm (MOPA)
- Positioning Precision: 0.2 mm
- Ranging Precision: 0.2 mm, Camera
- Image Resolution: N/A
- Motion Accuracy: 0.00482 mm
- Operating System: Windows | MacOS
- Connection Method: USB | Wi-FI | IP
- Supported Files: SVG | DXF | JPG | JPEG | PNG | BMP | TIF
- Supported Software: xTool Creatice Space | Atomm
What's the difference between F2 Ultra, F2 Ultra (Single), and F1 Ultra?
F2 Ultra: Equipped with both a 60W MOPA fiber laser and a 40W diode laser. Best for users who want maximum versatility in materials and processes. Supports color marking on metals, deep engraving, cutting, and processing on non-metal materials.
F2 Ultra (single): Equipped with only the 60W MOPA fiber laser. Better for users who mainly work with metal materials.
F1 Ultra: Uses a Q-switched fiber laser, equipped with both a 20W fiber laser and a 20W diode laser, a single camera, speeds up to 10,000 mm/s. Best for standard metal marking and entry-level needs.
What’s the max engraving depth or cutting thickness for metals?
The F2 Ultra can cut brass up to 2mm, stainless steel up to 2mm, aluminum up to 1mm. Engraving depth depends on the material and settings, but the 60W MOPA fiber laser ensures deep and precise results across a wide range of metals.
What materials can be engraved with F2 Ultra?
F2 Ultra can engrave almost all materials. Metals like gold, silver, aluminum, stainless steel (with multiple colors), platinum, titanium (with multiple colors), and others. Non-metals like wood, acrylic, plastic, slate, glass, paper, cardboard, and others.
What is the warranty of this machine?
F2 Ultra comes with a 1 year warranty.
How large is the working area provided by xTool F2 Ultra?
The working area is 220 x 220 mm and 220 x 500 mm with the conveyor.
