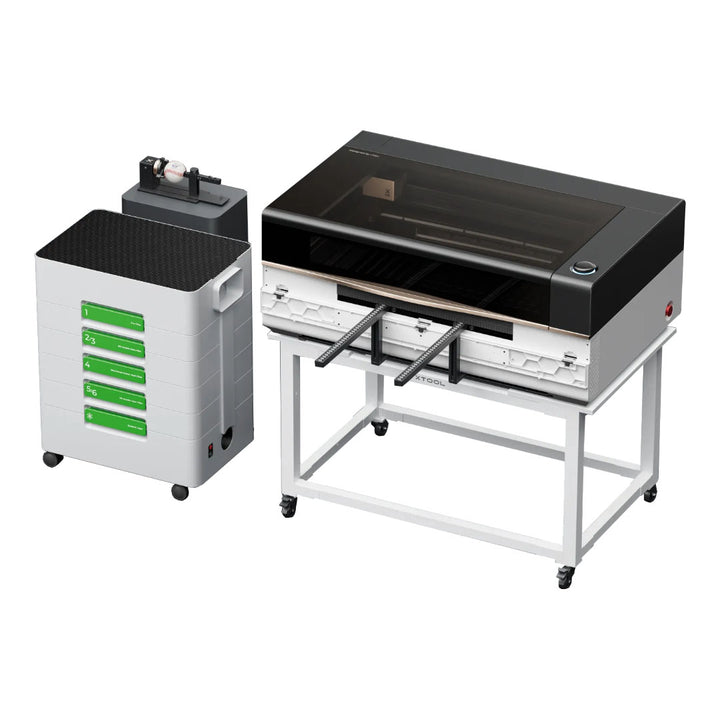

xTool P3 All-in-one Bundle (Class 4)
Elevate your business with the xTool P3 All-in-One Bundle. This comprehensive kit empowers you to push creative boundaries and unlock new possibilities in laser cutting and engraving — giving you everything...
Elevate your business with the xTool P3 All-in-One Bundle. This comprehensive kit empowers you to push creative boundaries and unlock new possibilities in laser cutting and engraving — giving you everything you need to innovate without limits.
Includes
-
1x xTool P3 - Laser Cutter & Engraver
-
1x xTool P3 - Mobile Work Stand
-
1x xTool RA3 MagSwap Rotary
-
1x xTool P3 - Intelligent Automatic Conveyor Feeder -
1x xTool SafetyPro AP2 Max Air Purifier
- Power Rating: 80W + Optional 5W IR Laser
- Weight: 105 kg
- Dimensions: 1250 x 750 x 496 mm
- Package Diamensions: 1350 x 920 x 700 mm
- Package Weight: 152 kg
- Engraving Speed: 1200mm/s
- Lifespan: 10,000h
- Motion Accuracy: 0.01 mm
- Positioning Precision: 0.2mm | Camera
- Laser Spot Size: 0.15 x 0.18 mm
- Processing Area: 915 x 458 mm
- Max Workpiece Height: 220 mm
- Max Rotary Engraving Diameter: 0 - 200 mm
- Camera: 16 MP SkyView Panoramic Camera + Close-range Camera + Side Camera x 2
- Positioning Method: Dual-Camera Positioning
- Focus Mode: Autofocus
- Ranging System: LiDAR Ranging System
- Preview Method: Smart Camera Preview
- ACS™ (Automated Creation System™): Yes
- Safety Certification: Class 1
- Max Machine Power Input: 1400W
- Power Adapter Voltage Input: 100 V - 240 V, AC 50 Hz
- Software: xTool Studio
- Operating Systems: Windows | MacOS
- Connection Type: USB | Wi-FI
- Supported File Types: SVG | DXF | JPG | JPEG | PNG | BMP | TIF
What kinds of material can the P3 cut and engrave?
| Material | Laser Cut | Laser Engrave |
|---|---|---|
| Paper | Yes | Yes |
| Wood | Yes | Yes |
| Acrylic | Yes | Yes |
| Leather | Yes | Yes |
| Cardboard | Yes | Yes |
| MDF | Yes | Yes |
| Felt | Yes | Yes |
| Rubber | Yes | Yes |
| Bamboo | Yes | Yes |
| Fabric | No | Yes |
| Glass | No | Yes |
| Ceramic | No | Yes |
| Jade | No | Yes |
| Marble | No | Yes |
| Shale | No | Yes |
| Cement | No | Yes |
| Brick | No | Yes |
| Plated Metal | No | Yes |
| Painted Metal | No | Yes |
What are the advantages of the xTool P3 over diode lasers?
Efficiency: CO2 laser cutters have ultra-high absorption efficiency. xTool P3 can cut 3mm basswood at the speed of 35mm/s , which is 6 times faster than a 20W diode laser and 3 times faster than a 40W diode laser.
Materials Versatility: CO2 laser cutter can cut all colors of acrylic, including clear acrylic, and directly engrave on glass, offering unmatched versatility for your creative projects.
What new materials can the P3 handle?
P3 expands your creative boundaries. Thanks to its new modular capabilities, it will be the first xTool CO2 machine to unlock direct engraving on plastic and metals like stainless steel and aluminum, opening up a whole new world of possibilities.
What is the maximum size and height of an object the P3 can work on? And do I need to buy an accessory like a riser base separately?
Working Area: The standard working area of the xTool P3 is an expansive 915 mm x 458 mm. This is approximately 2.3 times the area of the P2S, allowing you to easily handle large-scale projects or more efficient batch production. Furthermore, for projects that require processing of extra-long materials, the P3 is compatible with the optional Intelligent Conveyor Feeder, which unlocks the ability to work on materials of virtually any length.
Object Thickness (Height): Unlike older models that require a separate, manual riser base, the P3 features a built-in AutoLift Base (weight capacity: Under 16 kg) as a standard feature. This integrated system provides 220 mm of vertical space, allowing you to engrave directly on bulky items like briefcases and gift boxes with zero extra hassle.
What are the upgrades of P3 Conveyor Feeder compared to P2 Conveyor Feeder?
The P3 Intelligent Conveyor Feeder is a revolutionary upgrade, shifting from the P2 Automatic Conveyor Feeder's manual, knob-based adjustments to an automated and intelligent workflow. The P3 uses a camera to provide an entire material preview, automating everything from clamping to placement and feeding. Performance is also dramatically enhanced, enabling the processing of 22% wider, 85% thicker, and unlimited-length materials with significantly less waste. This is all achieved within a seamlessly integrated design that installs once and is always ready.
What are the upgrades of RA3 compared to RA2 Pro?
The RA3 is a revolutionary upgrade to the RA2 Pro, transforming it into a professional production system that is simply smarter, faster, and more powerful.
- Smarter: It introduces an intelligent workflow with Rotary Mode Recognition, 360° LiDAR Mapping™, and 3D Preview. This eliminates guesswork and unlocks flawless full-wrap engraving on complex objects like revolving vases.
- Faster: The MagSwap™ design provides an instant, tool-free setup that turns minutes into seconds, while engraving speeds are 2.4x faster*.
- More Powerful: It adds exclusive Batch Processing to scale your business and a larger, more secure grip for larger cylinders.
*The 2.4x faster speed is based on a comparison between the RA2 Pro and RA3 on the xTool P2S.
What are the upgrades of AP2 Max compared to AP2?
The AP2 Max is the industrial-grade version of the AP2, with 3 core upgrades:
- Performance: It has over 4.6x airflow, engineered for heavy-duty laser cutters like the P3 and MetalFab.
- Protection: It adds an exclusive formaldehyde filter that decomposes harmful gases into harmless substances.
- Filter Capacity: It features 4x filter capacity for a much longer lifespan.
What class of laser machine is xTool P3?
xTool P3 is classified as a Class 1 laser machine. However, if you use it with the conveyor feeder, it is classified as a Class 4 laser machine.
