Kitronik Simple Servo Control Board for the BBC micro:bit

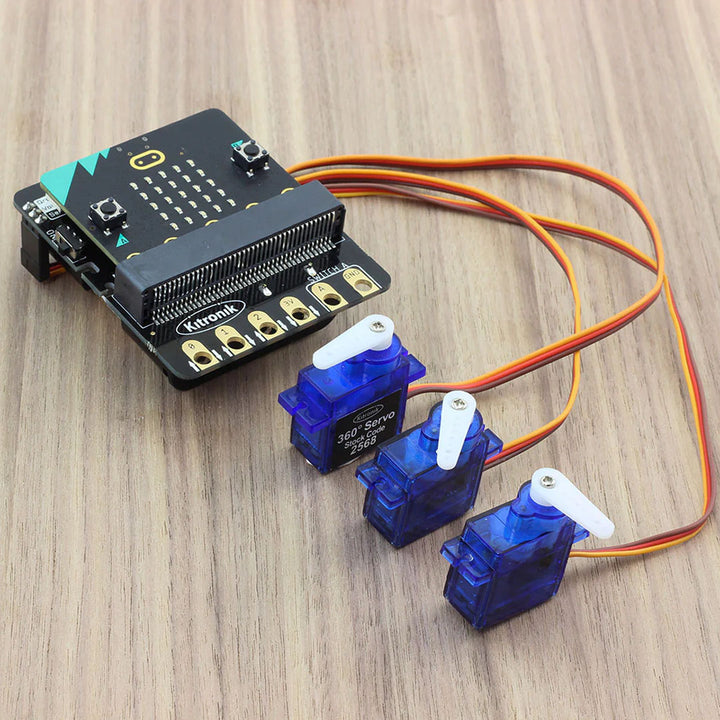

The Simple Servo Control Board provides an easy way to connect up to three servos to the BBC micro:bit. It includes an edge connector for the micro:bit to slot into, along with dedicated headers for servo connections. Additionally, the board features six croc-clip-friendly pads, allowing you to attach extra devices with ease.

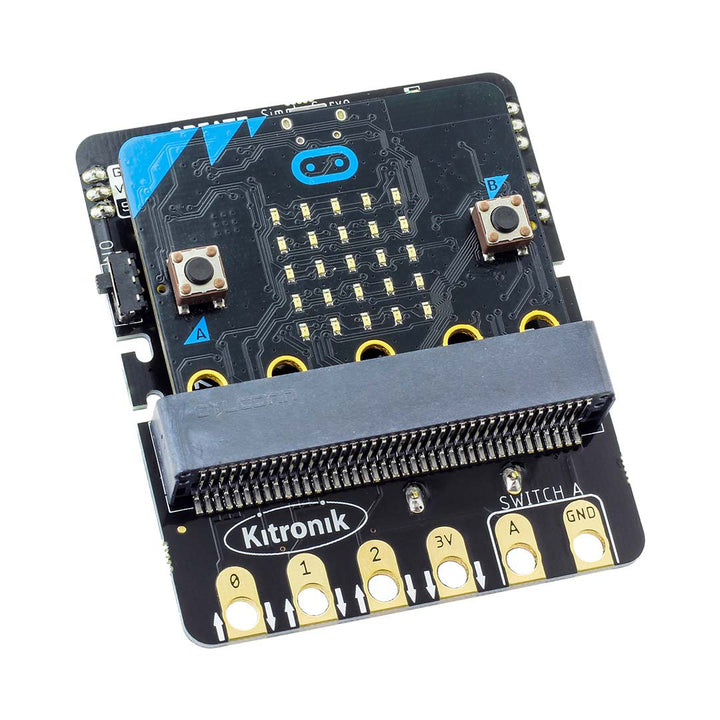

The servo pin headers are spaced at a standard 0.1 inch (2.54mm) pitch and are clearly labeled on the board as Power, Ground, and Signal. At the bottom of the board, six croc-clip-friendly pads break out the micro:bit’s P0, P1, and P2 pins. Additional pads provide access to 3.3V and GND, while the final pad, labeled "Switch A," allows for the connection of an external switch.

The board is powered by 3x AA batteries via an attached battery cage. This power supply drives the servos and is also regulated to provide the correct voltage for the BBC micro:bit. A built-in power switch lets you easily turn the servos and micro:bit on or off, while a power LED at the top of the board indicates when the board is active.

The Simple Servo Control Board also features mounting lugs on either side. These are designed for use with elastic bands, allowing the board to be secured to your project without the need for tools.

Programming with MakeCode

Kitronik has developed custom MakeCode blocks specifically for the Simple Servo Board. To add them:

1. Open MakeCode and start a new project.
2. Under the “Advanced” section, click on “Extensions.”
3. In the search bar, type “Simple Servo.”
4. Once the extension appears, click on it to add it to your project.

Programming with MicroPython

Kitronik also provides example code for setting up and controlling the servos using MicroPython. A dedicated class is available on their GitHub page. For further guidance, please refer to the product datasheet.

Features

• A simple interface for the BBC micro:bit, for control of up to 3 servos.
• Featuring an edge connector that the micro:bit pushes into.
• In addition to the servo pin header connections, there are also 6 croc-clippable pads for adding additional devices.
• The board includes a power switch to turn the servo’s and BBC micro:bit on or off.
• The power LED at the top of the board indicates when the board is active.
• Code it with MakeCode (For more information, please see the Datasheet).
• Code it with MicroPython (See GitHub page. For more information, please see the Datasheet).
• The board has mounting lugs on either side. They have been designed for use with elastic bands so that the board can be connected to your project without the need for tools.
• The simple servo control board has a battery cage pre-fitted to the rear of the board.
